C & K COMPONENTS  1101M2S4AQE2  Slide Switch, SPDT, On-None-On, Through Hole, 6 A, 120 V

C & K COMPONENTS 1101M2S4AQE2
Technical Data Sheet (415.54KB) EN See all Technical Docs

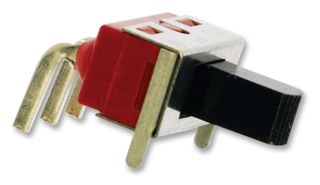

Image is for illustrative purposes only. Please refer to product description.

Product Overview

The 1101M2S4AQE2 is a single-pole double-throw (SPDT) PC mount vertical Miniature Slide Switch with right angle through-hole termination, 0.285-inch high black nylon actuator and ON-NONE-ON function. The 1000 series switch has silver plated copper alloy contact and stainless steel housing. Epoxy terminal seal is compatible with bottom-wash cleaning.
  • 1000Vrms at sea level Minimum dielectric strength
  • -30 to 65°C Operating temperature range
  • Solderability as per MIL-STD-202F method 208D or EIA RS-186E method 9

Product Information

Contact Configuration:
SPDT
Switch Operation:
On-None-On
Switch Mounting:
Through Hole
Product Range:
-
Contact Current Max:
6A
Contact Voltage AC Max:
120V
Contact Voltage DC Max:
28V
Orientation:
Right Angle
SVHC:
No SVHC (20-Jun-2016)

Find similar products  grouped by common attribute

Applications

  • Sensing & Instrumentation;
  • Communications & Networking;
  • Computers & Computer Peripherals

Legislation and Environmental

Country of Origin:
China

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
85365019
Weight (kg):
.005004
