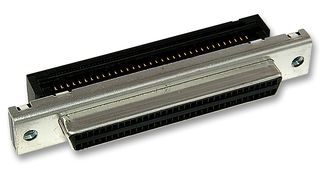

HARTING  60 04 068 5344  I/O Connector, SCSI, Receptacle, 68 Contacts, IDC / IDT, Cable Mount

HARTING 60 04 068 5344
See all Technical Docs

Image is for illustrative purposes only. Please refer to product description.

Product Overview

The 60 04 068 5344 is a 68-position Socket Panel Connector with insulation displacement termination and with screw lock system, 2-56 UNC thread and IDC flat cable termination for har-mik series connectors. Miniature D connectors are a must in various cable-to-board applications where space saving and high data transfer rates are required. For the purposes of miniaturization and speed, HARTING offers a wide range of miniature D connectors with 14 to 100-poles. Available in two contact styles (pin & socket and bellows), these connectors in 1.27mm contact pitch allow data transfer rates up to 600MHz. The har-mik® connectors comply with various standards such as SCSI, IPI, HIPPI, IEEE 1284.

Product Information

Product Range:
-
Connector Type:
SCSI
Gender:
Receptacle
No. of Contacts:
68Contacts
Contact Termination Type:
IDC / IDT
Connector Mounting:
Cable Mount
Contact Material:
Copper
Contact Plating:
Gold Plated Contacts
SVHC:
No SVHC (17-Dec-2015)

Find similar products  grouped by common attribute

Applications

  • Industrial

Legislation and Environmental

Country of Origin:
China

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
85369010
Weight (kg):
.016
