IST INNOVATIVE SENSOR TECHNOLOGY  P0K1.202.3FW.B.007  RTD Sensor, Flat Wire, Class B, -200 °C, 300 °C, 100 ohm, 300°C Series

IST INNOVATIVE SENSOR TECHNOLOGY P0K1.202.3FW.B.007
Technical Data Sheet (128.98KB) EN See all Technical Docs

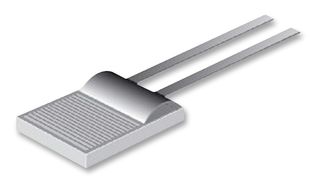

Image is for illustrative purposes only. Please refer to product description.

Product Overview

The P0K1.202.3FW.B.007 is a Platinum Temperature Sensor with flat wires. Temperature sensors are produced with different technologies to fit specific application requirements. To this end, IST has concentrated the development, manufacturing processes and materials to produce high-end thin-film temperature sensors. Thin-film temperature sensors exhibit a very short response time due to their low thermal mass. The technologies and processes of IST thin-film sensors combines the positive attributes of traditional wirewound platinum sensors accuracy, long-term stability, repeatability and interchangeability within a wide temperature range.
  • Low self-heating
  • Simple interchangeability
  • Fast response time
  • -200 to 300°C Operating temperature

Product Information

Sensing Temperature Min:
-200°C
Sensing Temperature Max:
300°C
Resistance:
100ohm
Product Range:
300°C Series
Temperature Sensing Range:
-200°C to +300°C
SVHC:
No SVHC (15-Jun-2015)

Find similar products  grouped by common attribute

Applications

  • Industrial

Legislation and Environmental

Country of Origin:
Switzerland

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
85332100
Weight (kg):
.000068
