IST INNOVATIVE SENSOR TECHNOLOGY  TSIC 306 TO92  SENSOR, TEMP, DIGITAL, 0.3DEG C, TO92

IST INNOVATIVE SENSOR TECHNOLOGY TSIC 306 TO92
Technical Data Sheet (522.31KB) EN See all Technical Docs

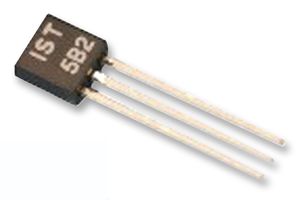

Image is for illustrative purposes only. Please refer to product description.

Product Overview

The TSIC 306 TO92 from IST Innovative Sensor Technology is a temperature sensor IC. This sensor consists of chip integrated and calibrated temperature sensors with an integrated signal converter for analogue, digital signal and ratiometric output. It offers measurement accuracy from ±0.5°C signal resolution for optimal temperature control. The measurement with the TSic is very simple and offers not only excellent accuracy, but also long term stability. Due to its low power consumption, it is well suited for data logger, digital thermometer and temperature monitoring and measurement applications.
  • Operating temperature range from -50°C to 150°C
  • Outstanding accuracy of ±0.3K
  • Low current consumption 30µA during operation
  • Supply voltage range from 3V to 5.5V
  • TO92 housing
  • Sampling rate is 10Hz
  • Output load resistance between signal and GND is 47kohm

Product Information

Product Range:
Tsic 306 Series
SVHC:
No SVHC (15-Jun-2015)

Find similar products  grouped by common attribute

Applications

  • Sensing & Instrumentation;
  • Industrial;
  • Consumer Electronics;
  • Portable Devices

Legislation and Environmental

Country of Origin:
Switzerland

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
90251920
Weight (kg):
.000238
