JST (JAPAN SOLDERLESS TERMINALS)  PAP-08V-S  Wire-To-Board Connector, PA Series, 8 Contacts, Receptacle, 2 mm, Crimp, 1 Rows

JST (JAPAN SOLDERLESS TERMINALS) PAP-08V-S
Technical Data Sheet (323.48KB) EN See all Technical Docs

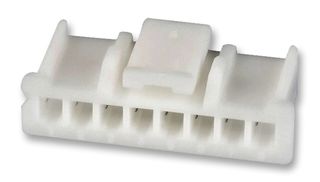

Image is for illustrative purposes only. Please refer to product description.

Product Overview

The PAP-08V-S is a 8-way 1-row Connector Housing with tin-plated phosphor bronze contacts, 2mm pitch spacing and crimp termination. Secure locking device, interchangeable between crimp and IDC socket, secondary retainers, harness variation, highly reliable contact, insertion guide mechanism and flanged press pin.
  • 3AAC/DC Current rating
  • 250VAC/DC Voltage rating
  • Initial value/10mR maximum contact resistance
  • Initial/1000MR Minimum insulation resistance

Product Information

Product Range:
PA Series
No. of Contacts:
8Contacts
Gender:
Receptacle
Pitch Spacing:
2mm
Contact Termination Type:
Crimp
No. of Rows:
1Rows
Contact Plating:
Tin Plated Contacts
Contact Material:
Phosphor Bronze
SVHC:
No SVHC (17-Dec-2015)

Find similar products  grouped by common attribute

Applications

  • Industrial

Legislation and Environmental

Country of Origin:
Japan

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
85366990
Weight (kg):
.000363
