LAPP KABEL  0048104  Wire, Hook Up, Hi Temp, Red, 21 AWG, 0.5 mm², 16 x 0.2mm, 328 ft, 100 m

LAPP KABEL 0048104
Technical Data Sheet (305.95KB) EN See all Technical Docs

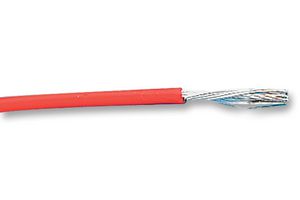

Image is for illustrative purposes only. Please refer to product description.

Product Overview

The OLFLEX HEAT 180 SiF series from Lapp Kable are versatile, single core stranded conductors with extended temperature range. These are used in areas with high ambient temperatures where conventional core insulation materials will embrittle after a short while. Typical fields of application includes switchgear cabinet building, appliances and apparatus engineering, electric motor industry, sauna/solarium construction, thermal and heating elements, lighting technology, ventilator engineering, air conditioning technology, oven construction, polymer processing, generator and transformer building.
  • Flexible fine wire, tinned copper conductor
  • Silicone based insulation
  • Nominal voltage is 300V/500V
  • Temperature range from -50°C to 180°C
  • Selectable conductor cross sectional area from 0.25mm² to 185mm²
  • Available in variety of jacket colours
  • CE approved

Product Information

Approval Specification:
-
Conductor Area CSA:
0.5 mm²
Conductor Material:
Copper
External Diameter:
2.1 mm
Jacket Colour:
Red
Jacket Material:
Silicone Rubber
No. of Max Strands x Strand Size:
16 x 0.2mm
Product Range:
-
Reel Length (Imperial):
328 ft
Reel Length (Metric):
100 m
SVHC:
No SVHC (17-Dec-2015)
Voltage Rating:
300 V
Wire Gauge:
21 AWG

Find similar products  grouped by common attribute

Applications

  • Industrial;
  • Power Management

Legislation and Environmental

Country of Origin:
Italy

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
85444995
Weight (kg):
1.81
