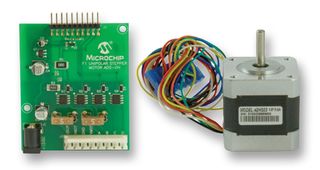

MICROCHIP - DM164130-8 - ADD ON BOARD, UNIPOLAR MOTOR, F1 LV

MICROCHIPDM164130-8
Image is for illustrative purposes only.
Please refer to product description
Manufacturer:
MICROCHIP
Order Code:
2099055
Manufacturer Part No:
DM164130-8

Technical Data Sheet (829.19KB) EN
Technical Data Sheet (829.19KB) EN

Product Information
  • ADD ON BOARD, UNIPOLAR MOTOR, F1 LV
  • Accessory Type: Unipolar Stepper Motor
  • For Use With: F1 LV Evaluation Platforms
  • Features: Unipolar Stepper Motor Plugs Directly into F1 LV Evaluation Platform
  • SVHC: No SVHC (16-Dec-2013)
Add-on for the F1 LV Evaluation Platform to Implement Unipolar Stepper Motor Control
The DM164130-8 is a is a bipolar stepper motor add on is a simple development accessory that plugs directly into the F1 LV evaluation platform and incorporates all the components necessary to implement bipolar stepper motor control. The bipolar stepper add on allows you to drive common two phase bipolar stepper motors used in consumer electronics, ranging from CNCs, printers, optical disc drives and small load positioning systems. The add on is shipped together with the Leadshine 39HS02 bipolar stepper motor pre wired to plug directly into add on connector J3. Alternatively, any other 5V to 12V bipolar stepper motor can be used by hooking it up through the J3 connector. The bipolar stepper add on uses a simple bipolar stepper drive formed by four independent N-type MOSFETs suitable for two phase bipolar stepper motors. Open loop control, closed loop control, full step, half step, microstepping commutation can be done in the software.
  • Direct connect to F1 LV evaluation platform
  • Four MOSFET half bridge circuits for bipolar stepper motor drive
  • Pin connector interface for motor
  • Featured with motor current limiting adjustment
  • 12V plug with voltage regulation
  • Contains debug header
  • Pin connector for additional power connections
  • 5A fuses are used to protect your add on in case of an overcurrent situation of the supply voltage
F1 Unipolar add on board, Unipolar stepper motor.
  • Motor Drive & Control
  • Consumer Electronics
  • Industrial
Find Similar Products grouped by common attributes

Availability

5 in stock for next working day delivery
2 deliver in 6 - 7 working days from our UK warehouse
see cut-off times
2 UK Stock: Order before 6.30pm (Mon - Fri, Excluding National Holidays)
5 AU Stock: Order before 6.30pm (Mon - Fri, Excluding National Holidays)

Price For: 1 Each

Minimum Order Quantity: 1

Order Multiple: 1

Unit Price: $120.13

  1. Qty

Price

Qty List Price
1+  $120.13
More : Get Quote
Legislation and Environmental
Similar Products
Find products functionally similar to this one. Click on one of the following links and you will be taken to a product group page that presents all products in this category that share the given attribute.
Accessories
Order Code Manufacturer Part No Manufacturer / Description Availability Price Qty
DM164130-5

MICROCHIP

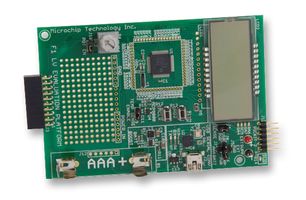

PIC16LF1947, F1 LV, XLP, EVAL BOARD

Silicon Manufacturer:Microchip; Core Architecture:PIC; Core Sub-Architecture:PIC12, PIC16; Silicon Core Number:PIC12F, PIC16F; Silicon Family Name:PIC12F1xxx, PIC16F1xxx;

13 deliver in 6 - 7 working days
cut-off times
13 UK Stock: Order before 6.30pm (Mon - Fri, Excluding National Holidays)
Price
For: 1 Each
1+
$53.37
