MULTICOMP  19-58V-5-TGG  RF / Coaxial Connector, SMA Coaxial, Straight Bulkhead Jack, Solder, 50 ohm, RG405

MULTICOMP 19-58V-5-TGG
MULTICOMP 19-58V-5-TGG
MULTICOMP 19-58V-5-TGG
Technical Data Sheet (372.28KB) EN See all Technical Docs

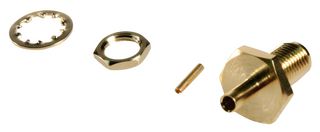

Image is for illustrative purposes only. Please refer to product description.

MULTICOMP 19-58V-5-TGG
MULTICOMP 19-58V-5-TGG
MULTICOMP 19-58V-5-TGG

Product Overview

The 19-58V-5-TGG is a SMA Bulkhead Jack with gold plated beryllium copper contact, gold plated stainless steel body and PTFE insulator. This RF/coaxial connector can be mounted on panel and has solder type coaxial termination. Used for connecting RG-405 coaxial cable.
  • 50R Impedance
  • 3mR Contact resistance
  • 5000MR Insulation resistance
  • -65 to +165°C Operating temperature range

Product Information

Connector Type:
SMA Coaxial
Connector Body Style:
Straight Bulkhead Jack
Coaxial Termination:
Solder
Impedance:
50ohm
Coaxial Cable Types:
RG405
Contact Material:
Beryllium Copper
Contact Plating:
Gold Plated Contacts
Frequency Max:
-
Connector Mounting:
Cable Mount
Product Range:
-
SVHC:
No SVHC (17-Dec-2015)

Find similar products  grouped by common attribute

Applications

  • Aerospace, Defence, Military;
  • Communications & Networking;
  • Industrial

Legislation and Environmental

Country of Origin:
Taiwan

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Y-Ex
Tariff No:
85366990
Weight (kg):
.09979
