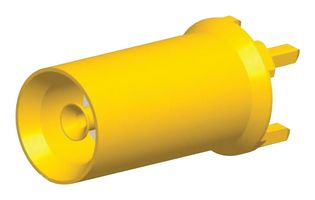

920-266J-51P
RF / Coaxial Connector, AFI Coaxial, Straight Jack, Through Hole Vertical, 50 ohm
Need more?
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $18.300 ($21.045) |
| 10+ | $17.970 ($20.6655) |
| 25+ | $16.550 ($19.0325) |
| 50+ | $15.870 ($18.2505) |
| 100+ | $14.110 ($16.2265) |
| 250+ | $12.650 ($14.5475) |
| 500+ | $12.190 ($14.0185) |
| 1000+ | $11.800 ($13.570) |
Product Information
Product Overview
Amphenol RF introduces the AFI connector interface as a solution for blind mate board-to-board RF applications, especially for the military and broadband marketplaces. The AFI interface utilizes a proprietary configuration that allows for industry leading “float” to compensate for the axial and radial misalignment due to packaging tolerances. This industry-leading float results in a maximum misalignment allowed by the system of .030” [0,8 mm] radial and .040” [1,0 mm] axial. The interface is available in both 75 Ohm and 50 Ohm configurations.
- Power handling: 95W
- 100 mating cycles
- Operating temperature: -65°C to +165°C
Applications
RF Communications, Signal Processing, Communications & Networking, Industrial, Telecommunications
Technical Specifications
AFI Coaxial
Through Hole Vertical
-
Gold Plated Contacts
PCB Mount
Lead (21-Jan-2025)
Straight Jack
50ohm
Beryllium Copper
6GHz
AFI
