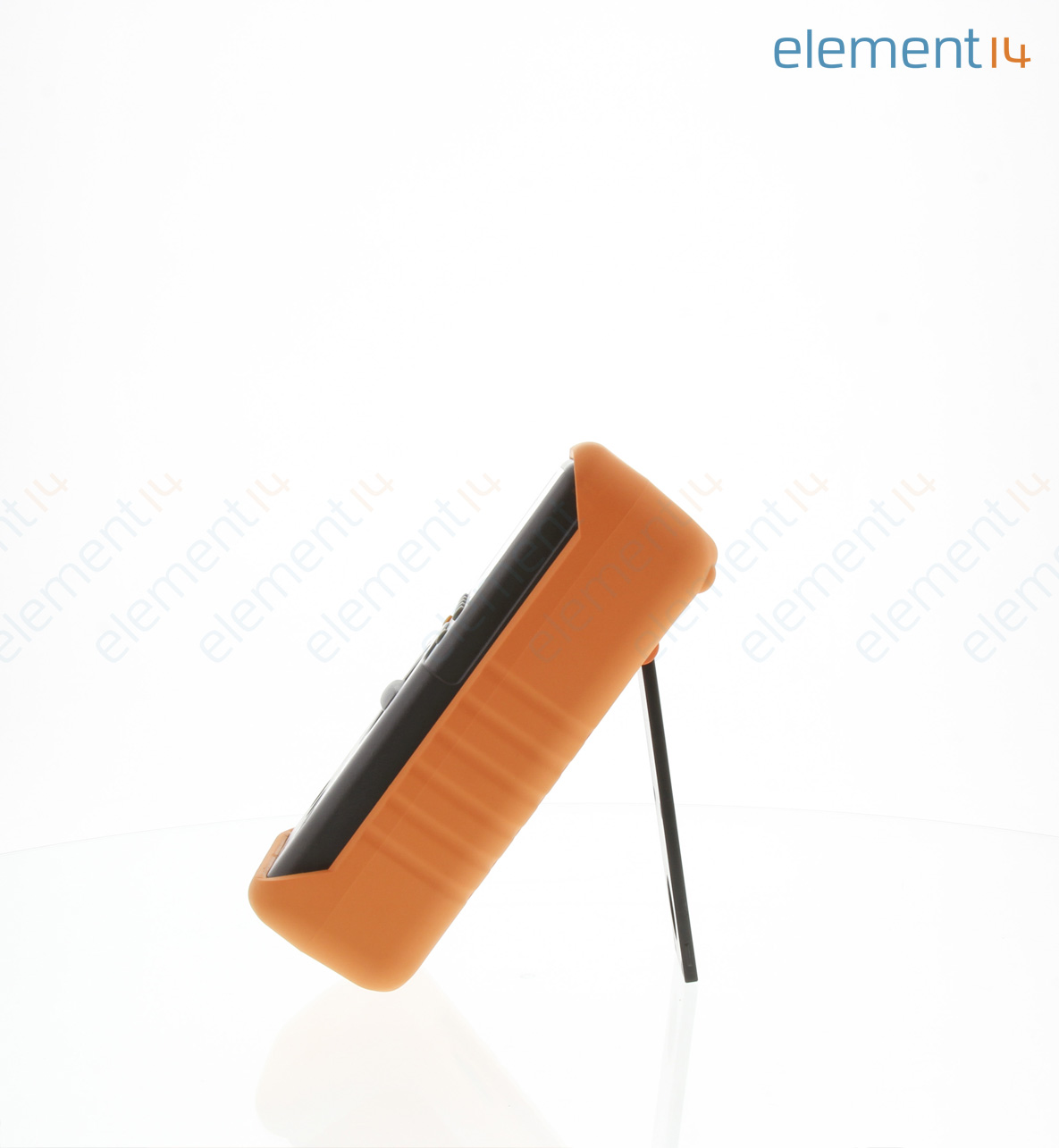

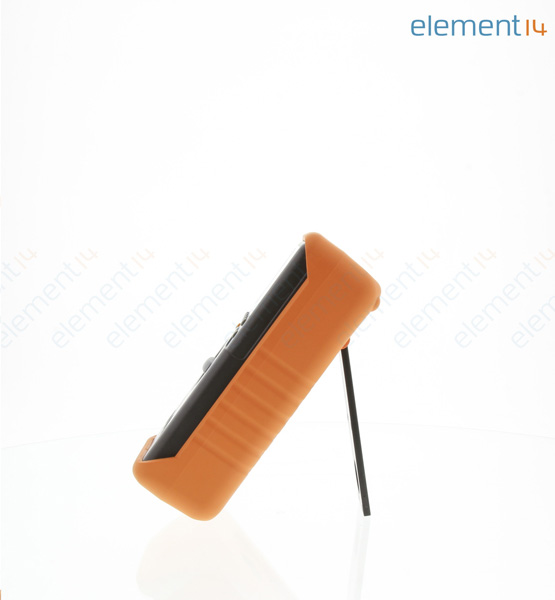

KEYSIGHT TECHNOLOGIES U1401B

Calibrator, Meter, Current, Frequency, Resistance, Temperature, Voltage, 192 mm, 90 mm, 54 mm

KEYSIGHT TECHNOLOGIES U1401B
KEYSIGHT TECHNOLOGIES U1401B
KEYSIGHT TECHNOLOGIES U1401B
KEYSIGHT TECHNOLOGIES U1401B
Video
360°
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
U1401B
Order Code:
1780331
  • Enter your custom part number in the textbox above

Part Number Saved

Part Number Saved

Technical Datasheet:
U1401B   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Current, Frequency, Resistance, Temperature, Voltage

:
192mm

:
90mm

:
54mm

:
VDC: 0.05%, 0.03%, VAC: 0.7%, 1.5%, ADC: 0.03%, AAC: 0.6%, Resistance: 0.15%, 0.15%, 1%

:
980g

:
0°C

:
40°C

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (2)

Product Overview

Carry two tools in one and calibrate while you measure with the Keysight U1401A handheld multi-function calibrator/meter. Now you can travel light, whether you´re doing calibration for validation, troubleshooting, or service and maintenance. Secure the robust U1401A in its sturdy carrying case and you´re ready to go. Certified to stringent quality standards, the U1401A lets you test with ease and confidence with one handy, lightweight tool.
  • Dual display with bright LCD backlight
  • Simultaneous signal source and measure for all-in-one-tool convenience
  • Source bipolar voltage and current, square-wave signal, with auto SCAN and RAMP output modes
  • Measure DC, AC, AC+DC, Resistance, temperature, frequency, pulse width and more
  • 3-year warranty for greater assurance of quality and reliability
  • 4-20 mA and 0-20 mA percentage scale readout
  • 50,000 count true-RMS DMM
  • Built-in battery charging capability

Applications

Test & Measurement, Maintenance & Repair

Contents

Meter, quick start guide, Certificate of Calibration, standard test lead kit, yellow test lead for mA simulation, protective holster, rechargeable battery pack and AC power adapter and cord (country dependant)

No Longer Manufactured

$1,208.19 ( $1,389.42  Inc. GST)

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
  • 1+
Quantity Price (Incl GST) Your Price


1+ $1,208.19 ($1,389.42)
