FSB50825B

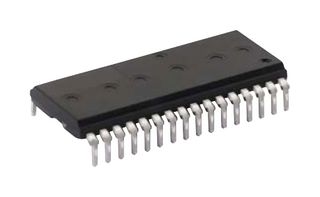

Intelligent Power Module (IPM), MOSFET, 250 V, 3.6 A, 1.5 kV, SPM5P-023, SPM5
- Manufacturer:
- ONSEMI ONSEMI
- Manufacturer Part No:
- FSB50825B
- Order Code:
- 3131455
- Product Range
- Motion SPM 5 Series
- Technical Datasheet:
- FSB50825B Datasheet
Product Range Selector (Motion SPM 5 Series)
See all from this product rangeProduct Overview
An advanced motion SPM 5 module providing a full- featured, high performance inverter output stage for AC induction, BLDC and PMSM motors such as refrigerators, fans and pumps. This module integrates optimized gate drive of the built-in MOSFETs (FRFET® technology) to minimize EMI and losses, while also providing multiple on-module protection features including undervoltage lockouts and thermal monitoring. The built-in, high speed HVIC requires only a single supply voltage and translates the incoming logic level gate inputs to the high voltage, high current drive signals required to properly drive the module's internal MOSFETs. Separate open source MOSFET terminals are available for each phase to support the widest variety of control algorithms. Typically used for 3-phase inverter driver for small power AC motor drive.
- UL certified number E209204 (UL1557)
- Optimized for over 10KHz switching frequency
- 250V RDS(ON), 0.55 (max) FRFET MOSFET 3-phase inverter with gate drivers and protection
- Built-in bootstrap diodes simplify PCB layout
- Separate open source pins from low side MOSFETs for three phase current sensing
- Active-HIGH interface, works with 3.3 / 5V logic, schmitt-trigger input
- Optimized for low electromagnetic interference
- Isolation rating of 1500Vrms / min
- HVIC for gate driving and undervoltage protection
