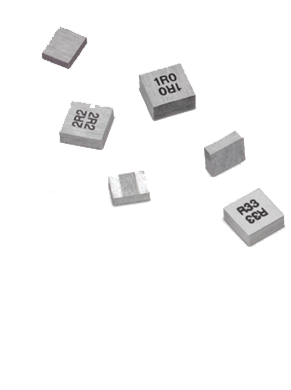

WE-MAPI Miniature High Current Power Inductors

Wurth Electronics WE-MAPI Miniature High Current Power Inductor is the smallest metal alloy inductor available on the market, as small as 1.6 x 1.6 x 1.0mm. WE-MAPI inductors are equipped with an iron alloy core material which allows a compact design with high current capabilities.

Main Characteristics

  • Magnetic iron alloy allows high rated currents
  • Compact design
  • Magnetically shielded
  • High current capability and handles high transient current spikes
  • Low acoustic noise and low leakage flux noise
  • Operating temperature: –40 °C to 125 °C

Applications

  • DC/DC-converter for high current power supplies
  • DC/DC-converter for Field Programmable Gate Array (FPGA)
  • POL-converters
  • Portable power like PDA, digital camera
  • Mainboards/graphic cards
  • Battery powered devices
  • Wireless communication devices
  • Power supplies for smart- phones, tablet PCs and other mobile devices
WE-MAPI Miniature High Current Power Inductors

Product Series

Compare Selected Compare Add Selected Add

Contract pricing display is unavailable at the moment. Prices shown are standard retail prices, orders placed will have contract pricing applied when processed.

  Manufacturer Part No Order Code Manufacturer / Description
Availability Price For
Price (Incl GST)
Quantity
7443832
7443832 - Design Kit, WE-MAPI Series SMD Power Inductors, 2506/2508/2510

2400020

Design Kit, WE-MAPI Series SMD Power Inductors, 2506/2508/2510

WURTH ELEKTRONIK

DESIGN KIT, SMD POWER INDUCTOR; Kit Contents:2506, 2508 & 2510 Sizes of WE-MAPI Series SMD Power Inductors; Product Range:-; SVHC:No SVHC (15-Jan-2019)

  • 32 available for 4 - 5 business days delivery
+ Check Stock & Lead Times

  • 32 available for 4 - 5 business days delivery: (UK stock) Order before 23:35 Mon-Fri (excluding National Holidays)

More stock available week commencing 21/09/20

Restricted Item
74438335100
74438335100 - Power Inductor (SMD), 10 µH, 850 mA, Shielded, 2 A, WE-MAPI Series, 3mm x 3mm x 1.5mm

2361923

Power Inductor (SMD), 10 µH, 850 mA, Shielded, 2 A, WE-MAPI Series, 3mm x 3mm x 1.5mm

WURTH ELEKTRONIK

INDUCTOR, 10UH, 0.85A, 20%, PWR, 21MHZ; Inductance:10µH; RMS Current (Irms):850mA; Inductor Construction:Shielded; Saturation Current (Isat):2A; Product Range:WE-MAPI Series; Power Inductor Case:3mm x 3mm x 1.5mm; DC Resistance Max:0.513ohm; Inductance T

  • 90 available for 4 - 5 business days delivery
+ Check Stock & Lead Times

  • 90 available for 4 - 5 business days delivery: (UK stock) Order before 23:35 Mon-Fri (excluding National Holidays)

More stock available week commencing 19/10/20

Cut Tape
Packaging Options
Suggested replacement for:2361923
2361923RL in Re-reel

Restricted Item
74438322022
74438322022 - Power Inductor (SMD), 2.2 µH, 1.34 A, Shielded, 2.2 A, WE-MAPI Series, 1008 [2520 Metric]

2361885

Power Inductor (SMD), 2.2 µH, 1.34 A, Shielded, 2.2 A, WE-MAPI Series, 1008 [2520 Metric]

WURTH ELEKTRONIK

INDUCTOR, 2.2UH, 1.34A, 30%, PWR, 60MHZ; Inductance:2.2µH; RMS Current (Irms):1.34A; Inductor Construction:Shielded; Saturation Current (Isat):2.2A; Product Range:WE-MAPI Series; Power Inductor Case:1008 [2520 Metric]; DC Resistance Max:0.302ohm; Inducta

  • 27 available for 4 - 5 business days delivery
+ Check Stock & Lead Times

  • 27 available for 4 - 5 business days delivery: (UK stock) Order before 23:35 Mon-Fri (excluding National Holidays)

More stock available week commencing 19/10/20

Cut Tape
Packaging Options
Suggested replacement for:2361885
2361885RL in Re-reel

Restricted Item
74438333022
74438333022 - Power Inductor (SMD), 2.2 µH, 1.4 A, Shielded, 3.9 A, WE-MAPI Series, 3mm x 3mm x 1mm

2361901

Power Inductor (SMD), 2.2 µH, 1.4 A, Shielded, 3.9 A, WE-MAPI Series, 3mm x 3mm x 1mm

WURTH ELEKTRONIK

INDUCTOR, 2.2UH, 1.4A, 20%, PWR, 50MHZ; Inductance:2.2µH; RMS Current (Irms):1.4A; Inductor Construction:Shielded; Saturation Current (Isat):3.9A; Product Range:WE-MAPI Series; Power Inductor Case:3mm x 3mm x 1mm; DC Resistance Max:0.172ohm; Inductance T

  • 23 available for 4 - 5 business days delivery
+ Check Stock & Lead Times

  • 23 available for 4 - 5 business days delivery: (UK stock) Order before 23:35 Mon-Fri (excluding National Holidays)

More stock available week commencing 19/10/20

Cut Tape
Packaging Options
Suggested replacement for:2361901
2361901RL in Re-reel

Restricted Item
74438323010
74438323010 - Power Inductor (SMD), 1 µH, 2.5 A, Shielded, 4 A, WE-MAPI Series, 1008 [2520 Metric]

2361891

Power Inductor (SMD), 1 µH, 2.5 A, Shielded, 4 A, WE-MAPI Series, 1008 [2520 Metric]

WURTH ELEKTRONIK

INDUCTOR, 1UH, 2.5A, 20%, PWR, 80MHZ; Inductance:1µH; RMS Current (Irms):2.5A; Inductor Construction:Shielded; Saturation Current (Isat):4A; Product Range:WE-MAPI Series; Power Inductor Case:1008 [2520 Metric]; DC Resistance Max:0.075ohm; Inductance Tole

Available for back order

+ Check Stock & Lead Times

More stock available week commencing 19/10/20 Contact me when back in stock
Cut Tape
Packaging Options
Suggested replacement for:2361891
2361891RL in Re-reel

Restricted Item
744383210047
744383210047 - Power Inductor (SMD), 470 nH, 2.2 A, Shielded, 3.7 A, WE-MAPI Series, 1008 [2520 Metric]

2361881

Power Inductor (SMD), 470 nH, 2.2 A, Shielded, 3.7 A, WE-MAPI Series, 1008 [2520 Metric]

WURTH ELEKTRONIK

INDUCTOR, 0.47UH, 2.2A, 30%, PWR, 165MHZ; Inductance:470nH; RMS Current (Irms):2.2A; Inductor Construction:Shielded; Saturation Current (Isat):3.7A; Product Range:WE-MAPI Series; Power Inductor Case:1008 [2520 Metric]; DC Resistance Max:0.095ohm; Inducta

Available for back order

+ Check Stock & Lead Times

More stock available week commencing 19/10/20 Contact me when back in stock
Cut Tape
Packaging Options
Suggested replacement for:2361881
2361881RL in Re-reel

Restricted Item
