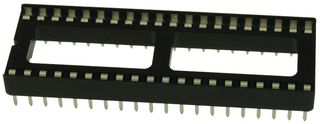

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS |
|---|---|
| Manufacturer Part No | DILB40P-223TLFCopy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 2668406 |
| Your Part Number |
8,399 total stock globally
Need more?
8,399 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $3.670 ($4.2205) |
| 10+ | $3.210 ($3.6915) |
| 100+ | $2.750 ($3.1625) |
| 500+ | $2.480 ($2.852) |
| 1000+ | $2.430 ($2.7945) |
| 2500+ | $2.380 ($2.737) |
Price for:Each
Minimum: 1
Multiple: 1
$3.67 ($4.22 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS |
|---|---|
| Manufacturer Part No | DILB40P-223TLFCopy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 2668406 |
| No. of Contacts | 40Contacts |
| Connector Type | DIP Socket |
| Pitch Spacing | 2.54mm |
| Product Range | - |
| Row Pitch | 15.24mm |
| Contact Material | Copper Alloy |
| Contact Plating | Tin Plated Contacts |
| SVHC | No SVHC (17-Jan-2023) |
Product Overview
The DILB40P-223TLF is a 40-position 2-row open frame black stamped and formed DIP Socket with standard insulator. The contact is made of copper alloy with UL94V-0 polyester insulator. Integrated circuits are usually called ICs or chips. They are complex circuits which have been etched onto tiny chips of semiconductor (silicon). The chip is packaged in a plastic holder with pins spaced on a 0.1-inch grid which will fit the holes on stripboard and breadboards. Very fine wires inside the package link the chip to the pins.
- 20 Contacts per row
- 1000VACrms Minimum withstanding voltage
- 30MΩ Maximum at 6VDC Contact resistance
Applications
Industrial
Technical Specifications
| No. of Contacts | 40Contacts |
|---|---|
| Pitch Spacing | 2.54mm |
| Row Pitch | 15.24mm |
| Contact Plating | Tin Plated Contacts |
| Connector Type | DIP Socket |
|---|---|
| Product Range | - |
| Contact Material | Copper Alloy |
| SVHC | No SVHC (17-Jan-2023) |
Technical Docs (2)
Alternatives for DILB40P-223TLF
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366930 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (17-Jan-2023) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .006008 |
