Charging Coils

: 105 Products Found

Filter Layout: LEFT

TOP

0 Filter(s) Selected

Products Found Please click the 'Apply Filters' button to update results

Keep applying filters or Show Results Show Results

Apply Filters

Filters

Clear All Filters

Min/Max Inductance

Reset

Min/Max DC Resistance Max

Reset

Min/Max Quality Factor

Reset

Min/Max Product Height

Reset

Contract pricing display is unavailable at the moment. Prices shown are standard retail prices, orders placed will have contract pricing applied when processed.

Open Filters

Our range of wireless charging coils includes one coil, two coil and three coil devices, with inductance from 2.5µH to 47µH.

Wireless charging coils are electronic components at the core of wireless charging technology; an approach which allows battery-operated mobile and portable devices to be recharged without need for cables or plugging in.

Broadly, there are three types of wireless charging. There are charging pads that use tightly coupled electromagnetic inductive or non-radiative charging; charging bowls or through-surface type chargers that use loosely coupled or radiative electromagnetic resonant charging that can transmit a charge a few centimetres; and uncoupled radio frequency (RF) wireless charging that allows a trickle charging capability at distances of many feet.

Both tightly coupled inductive and loosely coupled resonant charging operate on the same principle of physics: a time-varying magnetic field induces a current in a closed loop of wire.

Qi wireless charging coils are important because they comply with the Qi charging standard. This is not the only wireless charging method available, but it's the first one that is supported by two of the largest and most-influential smartphone makers: Samsung and Apple.

Applications of wireless charging coils

Wireless charging is currently being used in many applications including:

Smartphones and wearable technology
Notebooks and tablets
Power tools and service robots, such as vacuum cleaners
Multicopters and electric toys
Medical devices
In-car charging

Compare Selected Compare (0)

Sort by

Best Match

Best Match Price: Low to High Price: High to Low Stock: Low to High Stock: High to Low

Manufacturer Part No	Order Code	Description / Manufacturer	Price For	Price (Incl GST)	Quantity	Product Range	Inductance	Inductance Tolerance	DC Resistance Max	No. of Coils	No. of Layers	Saturation Current (Isat)	Self Resonant Frequency	Quality Factor	AC Current Rating	Product Length	Product Width	Product Height	Inductor Mounting	Operating Temperature Min	Operating Temperature Max
						Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending
146179-8021	2913968 Data Sheet + RoHS	Charging Coil, PowerLife 146179, 4 µH, ± 2%, 0.235 ohm, 1 Coil, 1 Layer MOLEX You previously purchased this product. View in Order History	Each	1+ $18.20 ($20.93)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	PowerLife 146179	4µH	± 2%	0.235ohm	1 Coil	1 Layer	-	-	115@6.78MHz	-	-	-	0.685mm	Board Mount	-	-

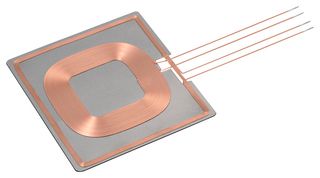

WR524825-17M6-NF-G	2790533 Data Sheet + RoHS	Charging Coil, NFC Antenna Combo Rx, WR-NFC, 16.8 µH, 0.75 ohm, 1 Coil, 1 Layer TDK You previously purchased this product. View in Order History	Each	1+ $13.86 ($15.94) 11+ $12.83 ($14.75) 33+ $11.10 ($12.77) 44+ $10.75 ($12.36) 88+ $10.40 ($11.96) 231+ $10.06 ($11.57) 440+ $9.71 ($11.17) 946+ $9.22 ($10.60) More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	WR-NFC	16.8µH	-	0.75ohm	1 Coil	1 Layer	-	-	-	-	52.5mm	48.5mm	0.52mm	Board Mount	-30°C	70°C
760308100110	2424068 Data Sheet + RoHS	Charging Coil, Wireless, WE-WPCC, 24 µH, ± 10%, 0.1 ohm, 1 Coil, 1 Layer WURTH ELEKTRONIK You previously purchased this product. View in Order History	Each	1+ $24.05 ($27.66) 10+ $22.06 ($25.37) 100+ $19.60 ($22.54) 500+ $17.95 ($20.64)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	WE-WPCC	24µH	± 10%	0.1ohm	1 Coil	1 Layer	10A	5MHz	180@125kHz	-	-	-	6mm	Board Mount	-20°C	105°C
760308101216	2543254 Data Sheet + RoHS	Charging Coil, Wireless, WE-WPCC, 7.2 µH, ± 10%, 0.44 ohm, 1 Coil, 6 Layers WURTH ELEKTRONIK You previously purchased this product. View in Order History	Each	1+ $15.54 ($17.87) 10+ $14.80 ($17.02) 60+ $13.67 ($15.72) 120+ $12.43 ($14.29) 1020+ $12.42 ($14.28)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	WE-WPCC	7.2µH	± 10%	0.44ohm	1 Coil	6 Layers	-	32MHz	10@125kHz	-	-	-	2mm	Board Mount	-20°C	105°C

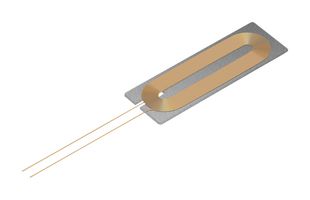

WR301025-19M8-G	2790529 Data Sheet + RoHS	Charging Coil, Receiver, WR, 12.8 µH, 1.27 ohm, 1 Coil, 2 Layers TDK You previously purchased this product. View in Order History	Each	1+ $4.29 ($4.93) 10+ $2.59 ($2.98) 88+ $2.29 ($2.63) 528+ $2.15 ($2.47) 1056+ $2.06 ($2.37)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	WR	12.8µH	-	1.27ohm	1 Coil	2 Layers	-	-	-	-	10mm	30mm	0.52mm	Board Mount	-30°C	70°C

WT303012-12F2-ID	2790523 Data Sheet + RoHS	Charging Coil, Transmitter, WT, 6.3 µH, ± 5%, 0.115 ohm, 1 Coil, 2 Layers TDK You previously purchased this product. View in Order History	Each	1+ $7.07 ($8.13) 10+ $6.43 ($7.39) 28+ $5.41 ($6.22) 56+ $4.86 ($5.59)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	WT	6.3µH	± 5%	0.115ohm	1 Coil	2 Layers	-	-	-	-	-	-	2.15mm	Board Mount	-30°C	70°C

146179-4001	2913964 Data Sheet + RoHS	Charging Coil, PowerLife 146179, 8.9 µH, ± 2%, 0.35 ohm, 2 Coils, 1 Layer MOLEX You previously purchased this product. View in Order History	Each	1+ $14.87 ($17.10) 10+ $15.39 ($17.70) 25+ $14.80 ($17.02)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	PowerLife 146179	8.9µH	± 2%	0.35ohm	2 Coils	1 Layer	-	-	25@200kHz	-	65.5mm	48.4mm	0.57mm	Board Mount	-	-

IWAS3010AZEB130KF1	3263651 Data Sheet + RoHS	Charging Coil, IWAS Series, 13 µH, ± 10%, 0.78 ohm, 1 Coil, 1 Layer VISHAY You previously purchased this product. View in Order History	Each	1+ $5.13 ($5.90) 10+ $4.67 ($5.37) 108+ $3.18 ($3.66) 252+ $2.99 ($3.44) 504+ $2.90 ($3.34) 1008+ $2.57 ($2.96) 2520+ $2.62 ($3.01) 5004+ $2.49 ($2.86) More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	IWAS Series	13µH	± 10%	0.78ohm	1 Coil	1 Layer	-	-	11@100kHz	-	10mm	30mm	1mm	Board Mount	-40°C	85°C

IWTX50R0DZEB6R3KF1	3263660 Data Sheet + RoHS	Charging Coil, IWTX Series, 6.3 µH, ± 10%, 0.025 ohm, 1 Coil, 2 Layers VISHAY You previously purchased this product. View in Order History	Each	1+ $5.86 ($6.74) 12+ $3.63 ($4.17) 108+ $3.41 ($3.92) 252+ $3.29 ($3.78) 504+ $3.08 ($3.54) 1008+ $2.98 ($3.43) More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	IWTX Series	6.3µH	± 10%	0.025ohm	1 Coil	2 Layers	-	-	90@100kHz	-	-	-	4mm	Board Mount	-40°C	85°C

760308101105	2965266 Data Sheet + RoHS	Charging Coil, WE-WPCC, 3.3 µH, ± 10%, 0.09 ohm, 1 Coil, 1 Layer WURTH ELEKTRONIK You previously purchased this product. View in Order History	Each	1+ $23.18 ($26.66) 10+ $21.47 ($24.69) 50+ $19.51 ($22.44) 100+ $16.12 ($18.54)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	WE-WPCC	3.3µH	± 10%	0.09ohm	1 Coil	1 Layer	6A	20MHz	30@125kHz	-	-	-	2.8mm	Board Mount	-20°C	105°C

WR444030-16F3-G	2377530 Data Sheet + RoHS	Charging Coil, Wireless, WR, 19 µH, 0.7 ohm, 1 Coil, 1 Layer TDK You previously purchased this product. View in Order History	Each	1+ $10.54 ($12.12) 20+ $9.49 ($10.91) 40+ $7.17 ($8.25) 80+ $6.75 ($7.76) 240+ $6.54 ($7.52) 440+ $6.33 ($7.28) 960+ $5.91 ($6.80) 2400+ $5.61 ($6.45) More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	WR	19µH	-	0.7ohm	1 Coil	1 Layer	-	-	-	-	44mm	40mm	0.62mm	Board Mount	-30°C	70°C

760308101208	2467264 Data Sheet + RoHS	Charging Coil, Wireless, WE-WPCC, 13 µH, ± 10%, 0.5 ohm, 1 Coil, 3 Layers WURTH ELEKTRONIK You previously purchased this product. View in Order History	Each	1+ $18.49 ($21.26) 25+ $18.38 ($21.14) 50+ $17.54 ($20.17) 100+ $14.85 ($17.08) 250+ $12.82 ($14.74) 360+ $10.79 ($12.41) More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	WE-WPCC	13µH	± 10%	0.5ohm	1 Coil	3 Layers	-	26MHz	17@125kHz	-	-	-	1.68mm	Board Mount	-20°C	105°C

760308103204	2400024 Data Sheet + RoHS	Charging Coil, Wireless, WE-WPCC, 16.7 µH, ± 10%, 0.43 ohm, 1 Coil, 1 Layer WURTH ELEKTRONIK You previously purchased this product. View in Order History	Each	1+ $11.40 ($13.11) 10+ $10.56 ($12.14) 50+ $8.68 ($9.98)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	WE-WPCC	16.7µH	± 10%	0.43ohm	1 Coil	1 Layer	4A	11MHz	32@125kHz	-	30.5mm	38.5mm	0.85mm	Board Mount	-20°C	105°C

760308101	2114371 Data Sheet + RoHS	Charging Coil, Wireless, WE-WPCC, 24 µH, ± 10%, 0.1 ohm, 1 Coil, 1 Layer WURTH ELEKTRONIK You previously purchased this product. View in Order History	Each	1+ $33.18 ($38.16) 10+ $30.40 ($34.96) 50+ $28.72 ($33.03) 100+ $27.03 ($31.08) 500+ $25.34 ($29.14)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	WE-WPCC	24µH	± 10%	0.1ohm	1 Coil	1 Layer	10A	6MHz	90@125kHz	-	53.3mm	53.3mm	6mm	Board Mount	-20°C	105°C

AWCCA-RX350300-101	2709585 Data Sheet + RoHS	Charging Coil, Compatible w/ Semtech 19V/20W Dual Mode TSDMRX chipset, AWCCA, 25 µH, ± 10% ABRACON You previously purchased this product. View in Order History	Each	1+ $6.55 ($7.53) 10+ $5.35 ($6.15) 100+ $4.07 ($4.68) 300+ $3.76 ($4.32) 600+ $3.51 ($4.04) 1200+ $3.36 ($3.86) More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	AWCCA	25µH	± 10%	0.17ohm	1 Coil	2 Layers	-	-	85@100kHz	-	-	-	3mm	Board Mount	-25°C	85°C

WR444025-17M6-G	2790531 Data Sheet + RoHS	Charging Coil, Receiver, WR, 16.7 µH, 0.65 ohm, 1 Coil, 1 Layer TDK You previously purchased this product. View in Order History	Each	1+ $12.28 ($14.12) 50+ $10.36 ($11.91) 100+ $9.05 ($10.41) 250+ $8.28 ($9.52) 500+ $7.82 ($8.99) 960+ $7.42 ($8.53) 4800+ $7.36 ($8.46) 9600+ $7.18 ($8.26) More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	WR	16.7µH	-	0.65ohm	1 Coil	1 Layer	-	-	-	-	44mm	40mm	0.52mm	Board Mount	-30°C	70°C

IWTX5050CZEB6R3KF1	3263655 Data Sheet + RoHS	Charging Coil, IWTX Series, 6.3 µH, ± 10%, 0.045 ohm, 1 Coil, 2 Layers VISHAY You previously purchased this product. View in Order History	Each	1+ $5.74 ($6.60) 8+ $4.31 ($4.96) 104+ $3.74 ($4.30) 504+ $3.50 ($4.03) 1000+ $2.34 ($2.69)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	IWTX Series	6.3µH	± 10%	0.045ohm	1 Coil	2 Layers	-	-	120@100kHz	-	50mm	50mm	3mm	Board Mount	-40°C	85°C

IWTX5050FEEB100KF1	3263658 Data Sheet + RoHS	Charging Coil, IWTX Series, 10 µH, ± 10%, 0.0297 ohm, 1 Coil, 2 Layers VISHAY You previously purchased this product. View in Order History	Each	1+ $10.45 ($12.02) 10+ $9.04 ($10.40) 100+ $6.46 ($7.43) 250+ $6.09 ($7.00) 500+ $5.90 ($6.79) 1000+ $5.32 ($6.12) More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	IWTX Series	10µH	± 10%	0.0297ohm	1 Coil	2 Layers	-	-	200@100kHz	-	50mm	50mm	6.5mm	Board Mount	-40°C	85°C

IWTX5050DZEB6R3KF1	3263657 Data Sheet + RoHS	Charging Coil, IWTX Series, 6.3 µH, ± 10%, 0.025 ohm, 1 Coil, 2 Layers VISHAY You previously purchased this product. View in Order History	Each	1+ $5.98 ($6.88) 8+ $3.70 ($4.26) 104+ $3.48 ($4.00) 256+ $3.36 ($3.86) 504+ $3.14 ($3.61) 1000+ $3.04 ($3.50) More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	IWTX Series	6.3µH	± 10%	0.025ohm	1 Coil	2 Layers	-	-	90@100kHz	-	50mm	50mm	4mm	Board Mount	-40°C	85°C

760308103205	2467268 Data Sheet + RoHS	Charging Coil, Wireless, WE-WPCC, 11 µH, ± 10%, 0.2 ohm, 1 Coil, 1 Layer WURTH ELEKTRONIK You previously purchased this product. View in Order History	Each	1+ $15.36 ($17.66) 50+ $14.53 ($16.71) 96+ $12.30 ($14.15) 288+ $10.62 ($12.21) 576+ $8.94 ($10.28)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	WE-WPCC	11µH	± 10%	0.2ohm	1 Coil	1 Layer	-	16MHz	30@125kHz	-	26.5mm	34mm	0.89mm	Board Mount	-20°C	105°C

WR121210-27M8-ID	2790525 Data Sheet + RoHS	Charging Coil, Receiver, WR, 8.32 µH, ± 5%, 0.98 ohm, 1 Coil, 1 Layer TDK You previously purchased this product. View in Order History	Each	1+ $5.09 ($5.85) 10+ $4.64 ($5.34) 25+ $3.90 ($4.49) 40+ $3.35 ($3.85) 120+ $3.16 ($3.63) 240+ $2.98 ($3.43) 480+ $2.88 ($3.31) 960+ $2.69 ($3.09) 2400+ $2.61 ($3.00) More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	WR	8.32µH	± 5%	0.98ohm	1 Coil	1 Layer	-	-	-	-	-	-	0.34mm	Board Mount	-30°C	70°C

WT151512-22F2-ID	2790521 Data Sheet + RoHS	Charging Coil, Transmitter, WT, 6.8 µH, ± 5%, 0.18 ohm, 1 Coil, 2 Layers TDK You previously purchased this product. View in Order History	Each	1+ $7.11 ($8.18) 10+ $4.68 ($5.38) 120+ $4.39 ($5.05) 300+ $4.14 ($4.76) 540+ $4.00 ($4.60) 1020+ $3.74 ($4.30) 2520+ $3.62 ($4.16) 5040+ $3.53 ($4.06) More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	WT	6.8µH	± 5%	0.18ohm	1 Coil	2 Layers	-	-	-	-	-	-	2.42mm	Board Mount	-30°C	70°C

WR221230-36M8-G	2790527 Data Sheet + RoHS	Charging Coil, Receiver, WR, 27.9 µH, ± 5%, 1.21 ohm, 1 Coil, 2 Layers TDK You previously purchased this product. View in Order History	Each	1+ $3.85 ($4.43) 10+ $2.63 ($3.02) 100+ $2.07 ($2.38) 600+ $2.03 ($2.33) 1050+ $1.90 ($2.19) 2550+ $1.87 ($2.15) 10050+ $1.75 ($2.01) More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	WR	27.9µH	± 5%	1.21ohm	1 Coil	2 Layers	-	-	-	-	22mm	12mm	0.87mm	Board Mount	-30°C	70°C

IWAS4832ABEB110JF1	3587972 Data Sheet + RoHS	WIRELESS CHARGING RECEIVE COIL, 11UH, 5% VISHAY You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape	1+ $10.28 ($11.82) 10+ $9.24 ($10.63) 25+ $7.40 ($8.51) 40+ $6.99 ($8.04) 80+ $6.57 ($7.56) 230+ $6.38 ($7.34) 440+ $6.17 ($7.10) 1080+ $5.76 ($6.62) More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	IWAS Series	11µH	± 5%	0.187ohm	1 Coil	1 Layer	-	-	60@200kHz	-	32mm	48mm	1.7mm	Board Mount	-40°C	105°C

WR483265-15F5-G	2377527 Data Sheet + RoHS	Charging Coil, Receiving, Wireless, WR, 13.3 µH, 0.2 ohm, 1 Coil, 1 Layer TDK You previously purchased this product. View in Order History	Each	1+ $9.06 ($10.42) 16+ $8.15 ($9.37) 32+ $6.53 ($7.51) 48+ $6.16 ($7.08) 80+ $5.80 ($6.67) 240+ $5.62 ($6.46) 448+ $5.44 ($6.26) 960+ $5.08 ($5.84) 2400+ $4.82 ($5.54) More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	WR	13.3µH	-	0.2ohm	1 Coil	1 Layer	-	-	-	-	32.5mm	48.5mm	1.25mm	Board Mount	-30°C	70°C
