05DN-01500-A-200

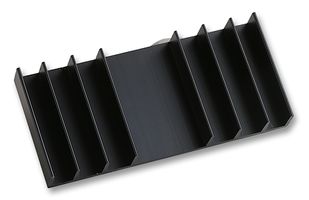

Heat Sink, Extruded Range - 1, Black Anodized, 2.3 °C/W, 108 mm, 14 mm, 150 mm
Image is for illustrative purposes only. Please refer to product description.
No Longer Stocked
Product Information
ManufacturerH S MARSTON
Manufacturer Part No05DN-01500-A-200
Order Code414244
Product Range05DN Series
Thermal Resistance2.3°C/W
Packages Cooled-
External Width - Metric108mm
External Height - Metric14mm
External Length - Metric150mm
External Diameter - Metric-
Heat Sink MaterialAluminium
External Height - Imperial0.55"
External Diameter - Imperial-
Product Range05DN Series
Product Overview
The 05DN-01500-A-200 is a medium-power extruded range-1 Heat Sink made of aluminium with black anodized finish. It is suitable for board-mounting and use with a wide variety of power devices.
Applications
HVAC, Thermal Management, Aerospace, Defence, Military
Technical Specifications
Thermal Resistance
2.3°C/W
External Width - Metric
108mm
External Length - Metric
150mm
Heat Sink Material
Aluminium
External Diameter - Imperial
-
Packages Cooled
-
External Height - Metric
14mm
External Diameter - Metric
-
External Height - Imperial
0.55"
Product Range
05DN Series
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:76041090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.16
