DM160222
Evaluation Module, CAP1188 Family MCU's, Capacitive Touch Applications, Programmable Sensitivity

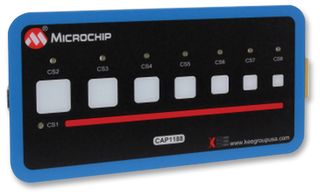

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | DM160222Copy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | 2420626 |
| Your Part Number |
Available to Order
Manufacturer Standard Lead Time: 15 week(s)
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $62.090 ($71.4035) |
Price for:Each
Minimum: 1
Multiple: 1
$62.09 ($71.40 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | DM160222Copy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | 2420626 |
| Application Sub Type | Capacitive Touch |
| Kit Contents | Eval Board CAP1188, USB Cable, CD with GUI, Documentation |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
The DM160222 is a CAP1188 Evaluation Kit provides an easy platform for evaluating and developing a variety of capacitive touch sense applications using the CAP11xx family. The GUI (Graphical User Interface) allows the user to analyse data and configure the capacitive touch controller as well as the LED drivers. A second connector allows engineers to connect their own board with the CAP1xxx controller and communicate with the GUI.
Applications
Test & Measurement, Industrial
Contents
Board, USB cable.
Notes
90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
Technical Specifications
| Application Sub Type | Capacitive Touch |
|---|---|
| SVHC | No SVHC (04-Feb-2026) |
| Kit Contents | Eval Board CAP1188, USB Cable, CD with GUI, Documentation |
|---|
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .2 |
