Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | LXK3301AR001Copy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | 3464707 |
| Your Part Number |
1 total stock globally
Need more?
1 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $360.200 ($414.230) |
Price for:Each
Minimum: 1
Multiple: 1
$360.20 ($414.23 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | LXK3301AR001Copy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | 3464707 |
| Board Type | Evaluation Board |
| IC / Module Used | LX3301A |
| Application Sub Type | Inductive Position Sensor |

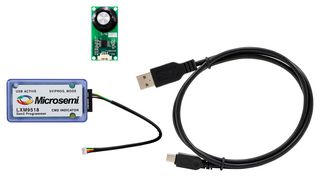

| Kit Contents | Evaluation Board LX3301A, LXM9518 IPCE Programmer, Links to Our IPCE Software, Cables |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
- LX3301A 120 degree rotary inductive position sensor EVAL board with programmer
- Inductive sensor measurement IC in TSSOP14 package
- Low cost, easy to manufacture inductive position sensor
- System calibration with on-chip calibration coefficient storage
- 4-wire system sensor interface
- Firmware and configuration EEPROM programming GUI
- Output can be programmed analogue, PWM (push pull or open drain) and threshold detect (TD)
Contents
LXE3301AR001 sensor evaluation board, IPCE programmer, links to our IPCE software, Cables.
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
| Board Type | Evaluation Board |
|---|---|
| Application Sub Type | Inductive Position Sensor |
| SVHC | No SVHC (04-Feb-2026) |
| IC / Module Used | LX3301A |
|---|---|
| Kit Contents | Evaluation Board LX3301A, LXM9518 IPCE Programmer, Links to Our IPCE Software, Cables |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .152407 |
