209142-0180..

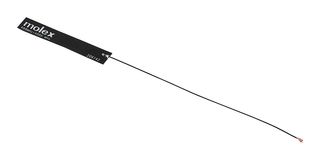

CELLULAR/LTE ANTENNA, 3.3-3.8GHZ, 2.7DBI
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No209142-0180..Copy
Manufacturer Standard Lead Time26 weeks
Order Code3225219
Product Range209142 Series
Also Known As2091420180, 209142-0180
Your Part Number
919 total stock globally
Need more?
919 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $9.440 ($10.856) |
| 10+ | $5.250 ($6.0375) |
| 25+ | $5.090 ($5.8535) |
| 50+ | $4.830 ($5.5545) |
| 100+ | $4.560 ($5.244) |
| 500+ | $3.960 ($4.554) |
Price for:Each
Minimum: 1
Multiple: 1
$9.44 ($10.86 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMOLEX
Manufacturer Part No209142-0180..Copy
Manufacturer Standard Lead Time26 weeks
Order Code3225219
Product Range209142 Series
Also Known As2091420180, 209142-0180
Technical Datasheet
Antenna TypeCellular / LTE
Frequency Min3.3GHz
Frequency Max3.8GHz
Antenna MountingAdhesive / UFL / I-Pex MHF Connector
Gain2.7dBi
VSWR-
Input Power2W
Input Impedance50ohm
Antenna PolarisationLinear
Product Range209142 Series
SVHCNo SVHC (04-Feb-2026)
Product Overview
- Linear polarisation
- Omnidirectional
- Adhesive mounting
- Compatible with U.FL / I-PEX MHF Connectors
- Frequency: 698MHz to 960MHz (Band 1), 1710MHz to 2690MHz and 3300MHz to 3800MHz
- Peak Gain: 1.2dbi @ 698MHz, 2.7dBi @ 3300MHz, 5.2dBi @ 1710MHz
- Dimensions: 85x14.5x0.1mm
- Cable length: 180mm
Technical Specifications
Antenna Type
Cellular / LTE
Frequency Max
3.8GHz
Gain
2.7dBi
Input Power
2W
Antenna Polarisation
Linear
SVHC
No SVHC (04-Feb-2026)
Frequency Min
3.3GHz
Antenna Mounting
Adhesive / UFL / I-Pex MHF Connector
VSWR
-
Input Impedance
50ohm
Product Range
209142 Series
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85177900
US ECCN:5A991.g
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.002
