MP001584

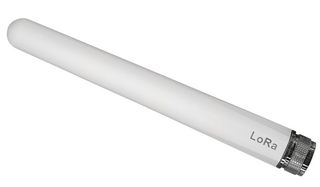

Antenna, LORA 863-928MHz & 902-928MHz Antenna, Outdoor, IP67, Direct Mount N TYPE
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MP001584Copy |
| Manufacturer Standard Lead Time | 23 weeks |
| Order Code | 3267935 |
| Product Range | MP-Wireless Omni Antennas |
| Your Part Number |
30 total stock globally
Need more?
30 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $53.180 ($61.157) |
Price for:Each
Minimum: 1
Multiple: 1
$53.18 ($61.16 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MP001584Copy |
| Manufacturer Standard Lead Time | 23 weeks |
| Order Code | 3267935 |
| Product Range | MP-Wireless Omni Antennas |
| Antenna Type | Whip |
| Frequency Min | 902MHz |
| Frequency Max | 928MHz |
| Antenna Mounting | N Connector |
| Gain | 1dBi |
| VSWR | 2 |
| Input Power | 2W |
| Input Impedance | 50ohm |
| Antenna Polarisation | Linear Vertical |
| Product Range | MP-Wireless Omni Antennas |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview
A Multicomp Waterproof IP67 Outdoor LORA (863-928MHz & 902-928MHz) antenna with Robust Direct-Mount N' Type Interface
- 2.4/5GHz Dual-Band Wifi outdoor antenna
- Waterproof: IP67/NEMA6 rated
- Robust N'Type Direct Mount Interface
- Survival Wind Speed 216 km/h
- -40C - +70C Operating Temperature
- Radiation: Omni
- High Efficiency Antenna Design (66% minimum)
- 1dBi Peak Gain at 863MHz - 928MHz
- UV Protection Coating
- Length: 178mm
Applications
RF Communications, Harsh Environment, Datacom
Technical Specifications
| Antenna Type | Whip |
|---|---|
| Frequency Max | 928MHz |
| Gain | 1dBi |
| Input Power | 2W |
| Antenna Polarisation | Linear Vertical |
| SVHC | No SVHC (27-Jun-2024) |
| Frequency Min | 902MHz |
|---|---|
| Antenna Mounting | N Connector |
| VSWR | 2 |
| Input Impedance | 50ohm |
| Product Range | MP-Wireless Omni Antennas |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85177900 |
| US ECCN: | 5A991.g |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .06 |
