| Manufacturer | NI / EMERSON |
|---|---|
| Manufacturer Part No | 789882-01Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 4471037 |
| Product Range | mioDAQ |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $4,424.200 ($5,087.830) |
Product Information
| Manufacturer | NI / EMERSON |
|---|---|
| Manufacturer Part No | 789882-01Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 4471037 |
| Product Range | mioDAQ |
| Technical Datasheet | |
| Product Type | Multifunction I/O Device |
| Sampling Rate | 250kSPS |
| Resolution | 16bit |
| No. of Input Channels | 32Channels |
| No. of Output Channels | 4Channels |
| No. of I/O's | 16I/O's |
| Supply Voltage Range | - |
| Operating Temperature Range | - |
| For Use With | NI DAQ Devices |
| Product Range | mioDAQ |
| SVHC | No SVHC (23-Jan-2024) |
Product Overview

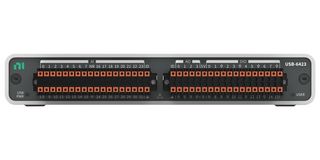

789882-01 is a 16bit, 250ks/s (32AI, 4 AO, 16 DIO) mioDAQ, USB-6423 multifunction I/O device. The USB-6423 is a USB type-C bus powered mioDAQ device with analogue I/O, digital I/O and four counters. It features analogue input channels with four input range settings from ±200mV to ±10V and analogue output channels that can output ±10V with update rates of 250ks/s/ch. Additionally, the USB-6423 digital I/O channels can function as static input or output channels, hardware-timed channels up to 10MHz, or as triggers, clocks or I/O for the four onboard counters. The USB-6423 also supports Flex Logger Lite, free data acquisition software from NI and includes documented APIs and examples for LabView, Python, C/C++ and more.
- Engineers use mioDAQ to take ±10V measurements build electromechanical test systems
- 2x 36-position spring terminals
- 2.61mV analogue input absolute accuracy
- Dimension is 116.7mm x 177.0mm x 30.4mm
Contents
NI mioDAQ model USB-6423, One 2 m USB-C to USB-C cable with locking screw, Spring terminals with back shells for strain relief, NI screwdriver.
Notes
Get 10% savings on NI USRP dual-channel transceivers for a limited time, valid until December 31, 2026. 1 year warranty.
Technical Specifications
| Product Type | Multifunction I/O Device |
|---|---|
| Resolution | 16bit |
| No. of Output Channels | 4Channels |
| Supply Voltage Range | - |
| For Use With | NI DAQ Devices |
| SVHC | No SVHC (23-Jan-2024) |
| Sampling Rate | 250kSPS |
|---|---|
| No. of Input Channels | 32Channels |
| No. of I/O's | 16I/O's |
| Operating Temperature Range | - |
| Product Range | mioDAQ |
Technical Docs (3)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Hungary Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84718000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (23-Jan-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .987379 |
