180-026-173L000
D Sub Connector Housing, Crimp, 26 Ways, High Density D Sub, DA, 180 Series, Plug, Steel Body

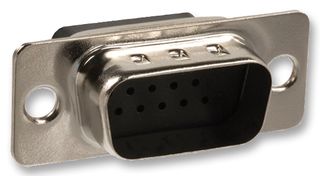

Image is for illustrative purposes only. Please refer to product description.
ManufacturerNORCOMP
Manufacturer Part No180-026-173L000Copy
Manufacturer Standard Lead Time29 weeks
Order Code2294215
Product Range180 Series
Your Part Number
194 total stock globally
Need more?
194 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $10.300 ($11.845) |
| 10+ | $9.210 ($10.5915) |
| 100+ | $7.810 ($8.9815) |
| 250+ | $7.320 ($8.418) |
| 500+ | $6.980 ($8.027) |
| 1000+ | $6.690 ($7.6935) |
Price for:Each
Minimum: 1
Multiple: 1
$10.30 ($11.84 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerNORCOMP
Manufacturer Part No180-026-173L000Copy
Manufacturer Standard Lead Time29 weeks
Order Code2294215
Product Range180 Series
No. of Positions26Ways
Connector TypeHigh Density D Sub
Connector Shell SizeDA
Product Range180 Series
Connector Body MaterialSteel Body
For Use WithNorcomp 180 Series D Sub Crimp Pin Contacts
SVHCNo SVHC (27-Jun-2024)
Product Overview
The 180-026-173L000 is a 26-way Male Crimp and Poke High Density Connector, 180 series, with nickel-plated shell, glass-filled PBT or nylon insulation. Plug shell has indents to provide grounding and additional retention, approximately 65% higher density than standard D-sub connectors.
- High performance stamped contacts
- UL94V-0 Flammability rating
- 5A Current rating
- 15mΩ Contact resistance
- 1000MΩ Insulation resistance
- 500VAC Voltage rating (for a minute)
- -50 to +100°C Temperature range
Applications
Industrial
Technical Specifications
No. of Positions
26Ways
Connector Shell Size
DA
Gender
Plug
For Use With
Norcomp 180 Series D Sub Crimp Pin Contacts
Connector Type
High Density D Sub
Product Range
180 Series
Connector Body Material
Steel Body
SVHC
No SVHC (27-Jun-2024)
Associated Products
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0056
