681S13W3103L001

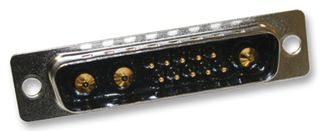

Combination Layout D Sub Connector, 40A, IP68, Seal-D 681S Series, DB-13W3, Plug, 13 Contacts
50 more incoming. You can reserve stock now
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $31.190 ($35.8685) |
| 10+ | $26.510 ($30.4865) |
| 25+ | $24.850 ($28.5775) |
| 100+ | $22.540 ($25.921) |
| 250+ | $21.130 ($24.2995) |
| 500+ | $20.730 ($23.8395) |
Product Information
Product Overview
The SEAL-D 681S series POWER-D vertical board-mount Mixed D-sub Connectors with machined copper alloy, full gold flash signal and power contacts with glass-filled thermoplastic insulator and nickel-plated, steel shell. It is available in 11 industry standard sizes/positions are 3W3, 5W1, 5W5, 7W2, 9W4, 11W1, 13W3, 13W6, 17W2, 21W1 and 21WA4. Unique sealing method maintains standard D-sub profile allowing for drop in replacement of current POWER-D connectors.
- Available in 9, 15, 25 and 37 sizes/positions
- Available with 40A power contacts, 5A signal
- IP67 Protection
- Allows signal, high current and high voltage in one connector
- Contacts are pre-loaded into the insulator
- UL94V-0 Flammability rating
- Panel sealing kits (Removable or permanent) available as a separate item
Applications
Communications & Networking, Computers & Computer Peripherals, Power Management, Industrial
Technical Specifications
Seal-D 681S Series
Plug
10 Signal, 3 Power
Through Hole Mount
Copper Alloy
Lead (27-Jun-2024)
DB-13W3
13Contacts
Solder
Steel Body
Gold Plated Contacts
