Need more?
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $4.400 ($5.060) |
| 10+ | $3.250 ($3.7375) |
| 50+ | $2.850 ($3.2775) |
| 100+ | $2.420 ($2.783) |
| 200+ | $2.200 ($2.530) |
| 500+ | $1.990 ($2.2885) |
| 2500+ | $1.640 ($1.886) |
| 5000+ | $1.610 ($1.8515) |
Product Information
Product Overview

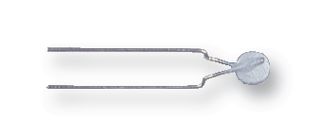

The PTCCL05H760HBE is a 2-pin PTC Thermistor with positive temperature coefficient and are primarily intended for overload protection. This PTCCL series thermistor features wide range of trip and non-trip currents from 11mA up to 800mA. They consist of a metallised ceramic disk with two tinned brass or copper clad steel leads reflow soldered to it and coated with a high temperature silicone lacquer. The PTC thermistors mounting is suitable for processing on automatic insertion equipment. Ideal for over-temperature/over-load protection.
- Withstand mechanical stresses and vibration
- Damp-heat and water immersion tests
Applications
Safety, Automotive, Communications & Networking, Industrial, Consumer Electronics
Technical Specifications
85ohm
PTCCL
0°C
70°C
± 20%
115mA
135°C
5mm
Through Hole
265V
Overload & Over Temperature Protection
PTC
76mA
Lead (17-Jan-2023)
145°C
-
Technical Docs (3)
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
