10226-6212PC

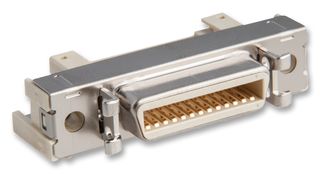

D Sub Connector, Mini D (Ribbon Connector), Receptacle, MDR 102, 26 Contacts, Solder
Available to Order
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $12.870 ($14.8005) |
| 10+ | $11.880 ($13.662) |
| 100+ | $10.000 ($11.500) |
| 250+ | $9.330 ($10.7295) |
| 500+ | $8.990 ($10.3385) |
| 1000+ | $8.560 ($9.844) |
Price for:Each
Minimum: 1
Multiple: 1
$12.87 ($14.80 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | 3M |
|---|---|
| Manufacturer Part No | 10226-6212PCCopy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 2360055 |
| Product Range | MDR 102 |
| Also Known As | 7000021504 |
| Technical Datasheet | |
| D Sub Connector Type | Mini D (Ribbon Connector) |
| Gender | Receptacle(View Associated Connectors) |
| Product Range | MDR 102 |
| No. of Contacts | 26Contacts |
| D Sub Shell Size | - |
| Contact Termination Type | Solder |
| Connector Mounting | Through Hole Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Plated Contacts |
| Connector Body Material | Steel Body |
| SVHC | No SVHC (15-Jan-2019) |
Product Overview
The 10226-6212PC is a 26-way 0.050-inch shielded boardmount Vertical Receptacle with gold-plated copper alloy contacts, through hole termination and PCB mounting. This 102 series connector is glass reinforced polyester (PBT) insulated, rugged die cast metal case construction, M2.5 (standard) lockstand thread.
- Interface latch design for connection stability
- UL94V-0 Flammability rating
- 1A Current rating
- -55 to 105°C Temperature rating
Applications
Industrial
Technical Specifications
| D Sub Connector Type | Mini D (Ribbon Connector) |
|---|---|
| Product Range | MDR 102 |
| D Sub Shell Size | - |
| Connector Mounting | Through Hole Mount |
| Contact Plating | Gold Plated Contacts |
| SVHC | No SVHC (15-Jan-2019) |
| Gender | Receptacle |
|---|---|
| No. of Contacts | 26Contacts |
| Contact Termination Type | Solder |
| Contact Material | Copper Alloy |
| Connector Body Material | Steel Body |
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Japan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366930 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (15-Jan-2019) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .009072 |
