10250-5212PL

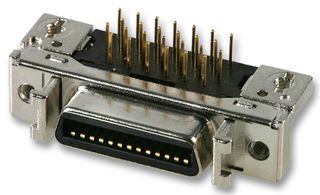

D Sub Connector, Right Angle, Mini D (Ribbon Connector), Receptacle, MDR 102, 50 Contacts, Solder
Available to Order
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $16.080 ($18.492) |
| 10+ | $15.680 ($18.032) |
| 100+ | $15.260 ($17.549) |
| 250+ | $14.480 ($16.652) |
| 500+ | $14.200 ($16.330) |
| 1000+ | $13.910 ($15.9965) |
Price for:Each
Minimum: 1
Multiple: 1
$16.08 ($18.49 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | 3M |
|---|---|
| Manufacturer Part No | 10250-5212PLCopy |
| Manufacturer Standard Lead Time | 17 weeks |
| Order Code | 9292780 |
| Product Range | MDR 102 |
| Also Known As | 7100007369 |
| Technical Datasheet | |
| D Sub Connector Type | Mini D (Ribbon Connector) |
| Gender | Receptacle(View Associated Connectors) |
| Product Range | MDR 102 |
| No. of Contacts | 50Contacts |
| D Sub Shell Size | - |
| Contact Termination Type | Solder |
| Connector Mounting | Through Hole Mount Right Angle |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Plated Contacts |
| Connector Body Material | Steel Body |
| SVHC | No SVHC (15-Jan-2018) |
Product Overview
The 102 series 0.05-inch Mini D Ribbon (MDR) Connector with board-mount thru-hole right angle shielded receptacle. It has copper alloy contact with 30-micro-inch minimum gold wiping area, nickel under-plate plating and glass reinforced polyester insulation.
- Wiper-on-wiper contact for reliable repetitive plugging
- Rugged die cast metal case construction
- SMT compatible PCT insulator material
- Screw or ground lock for reliable PCB retention
- Interface latch design for connection stability
- IEEE 1284C Interface as a 36 contact connector
- 14, 20, 26, 36, 40, 50, 68, 80 and 100 contacts
- UL94V-0 Flammability rating
- <gt/>5 x 10⁸Ω at 500VDC Insulation resistance
- 1A Current rating
- -55 to 105°C Temperature range
Applications
Communications & Networking, Computers & Computer Peripherals, Aerospace, Defence, Military
Technical Specifications
| D Sub Connector Type | Mini D (Ribbon Connector) |
|---|---|
| Product Range | MDR 102 |
| D Sub Shell Size | - |
| Connector Mounting | Through Hole Mount Right Angle |
| Contact Plating | Gold Plated Contacts |
| SVHC | No SVHC (15-Jan-2018) |
| Gender | Receptacle |
|---|---|
| No. of Contacts | 50Contacts |
| Contact Termination Type | Solder |
| Contact Material | Copper Alloy |
| Connector Body Material | Steel Body |
Technical Docs (2)
Alternatives for 10250-5212PL
1 Product Found
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Japan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366930 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (15-Jan-2018) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .014 |
