3517-20

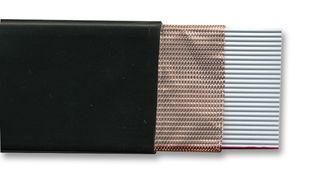

Ribbon Cable, Jacketed Flat, Screened, 20 Core, 28 AWG
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | 3M |
|---|---|
| Manufacturer Part No | 3517-20Copy |
| Manufacturer Standard Lead Time | 17 weeks |
| Order Code | 8608598 |
| Your Part Number | |
| Technical Datasheet |
30 total stock globally
Need more?
30 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $74.800 ($86.020) |
| 5+ | $67.320 ($77.418) |
| 10+ | $62.330 ($71.6795) |
Price for:1 Metre
Minimum: 1
Multiple: 1
$74.80 ($86.02 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | 3M |
|---|---|
| Manufacturer Part No | 3517-20Copy |
| Manufacturer Standard Lead Time | 17 weeks |
| Order Code | 8608598 |
| Technical Datasheet | |
| Cable Shielding | Screened |
| No. of Cores | 20Core |
| Wire Gauge | 28AWG |
| Conductor Area CSA | - |
| Reel Length (Imperial) | - |
| Reel Length (Metric) | - |
| Jacket Colour | Black |
| Cable Width | 28.7mm |
| No. of Max Strands x Strand Size | 7 x 36AWG |
| Pitch Spacing | 1.27mm |
| Voltage Rating | 50V |
| Conductor Material | Tinned Copper |
| Jacket Material | PVC |
| Ribbon Cable Type | Jacketed Flat Ribbon Cable |
| Product Range | - |
| SVHC | No SVHC (17-Dec-2014) |
Product Overview
The 3517-20 is a 20-conductor grey shielded Flat Ribbon Cable, 28AWG wire on 0.050-inch centers permits mass termination to a broad line of IDC connectors. The 3517 series flat cable is made of tinned copper conductor, black PVC jacket.
- CPR: Not Yet Qualified
- 360° Expanded copper shielding provides 20dB average shielding effectiveness
- Zippable for branching or discrete termination
- Meets external wiring requirements of National Electrical Code, Article 725 (CL2)
- 70Ω Unbalanced, 119Ω balanced characteristic impedance
- NEC 725, CL2 Flammability rating
Applications
Industrial
Notes
Splice-free continuous cable is available (Max Length: xx meters). Packaging is based on order size: < 10 Meters: Coil/Bag Pack, > 10 Meters: Paper Spool Pack.
Technical Specifications
| Cable Shielding | Screened |
|---|---|
| Wire Gauge | 28AWG |
| Reel Length (Imperial) | - |
| Jacket Colour | Black |
| No. of Max Strands x Strand Size | 7 x 36AWG |
| Voltage Rating | 50V |
| Jacket Material | PVC |
| Product Range | - |
| No. of Cores | 20Core |
|---|---|
| Conductor Area CSA | - |
| Reel Length (Metric) | - |
| Cable Width | 28.7mm |
| Pitch Spacing | 1.27mm |
| Conductor Material | Tinned Copper |
| Ribbon Cable Type | Jacketed Flat Ribbon Cable |
| SVHC | No SVHC (17-Dec-2014) |
Technical Docs (1)
Alternatives for 3517-20
1 Product Found
Associated Products
4 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85444995 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (17-Dec-2014) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .1 |
