3539-10

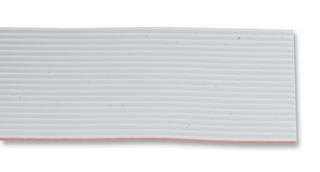

Ribbon Cable, Round Conductor Flat Medium Flex, Unscreened, 10 Core, 28 AWG, 0.093 mm²
- Manufacturer:
- 3M 3M
- Manufacturer Part No:
- 3539-10
- Order Code:
- 4141155
- Product Range
- 3539
- Technical Datasheet:
- 3539-10 Datasheet
Product Range Selector (3539)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Unscreened
- :
- 10Core
- :
- 28AWG
- :
- 0.093mm²
- :
- -
- :
- -
- :
- Grey
- :
- 12.7mm
- :
- 19 x 40AWG
- :
- 1.27mm
- :
- 300V
- :
- Tinned Copper
- :
- PVC
- :
- Flat Ribbon Cable
- :
- 3539
Technical Documents (1)
CAD Downloads
--Please select...
✔
--Please select...
×
Terms and Conditions
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
Product Overview
The 3539 series unshielded medium flex Life Cable with tinned stranded copper conductor and a grey PVC insulator. The 28AWG wire on 0.05-inch centres permits mass termination to a broad line of IDC connectors.
- CPR: Not Yet Qualified
- Flex life of 10 million cycles at 1-3/4" diameter
- 19 Strands of tinned copper provide extended flex life for dynamic applications
- Zippable for branching or discrete termination
- 106R Impedance
- 13.3pF/ft Capacitance
- 0.15µH/ft Inductance
- 72% Velocity of propagation
Applications
Computers & Computer Peripherals
Available for back order
More stock available to supplier lead times which is approximately 29/05/23
×
10
You can reserve stock now just order your desired quantity and checkout as normal. The quantity that cant be dispatched now will be placed on back order and sent as soon as we get a delivery from our supplier. You only get charged when the products are dispatched to you.
Due to market conditions delivery times are for general guidance only and may be subject to change at short notice
$5.19
(
$5.97
Inc. GST)
Pricing is unavailable. Please contact customer services.
- Price for:
- 1 Metre
Multiple: 1 Minimum: 1
| Quantity | Price (Incl GST) | Your Price |
|---|---|---|
| 1+ | $5.19 ($5.97) | ( ) |
| 5+ | $5.09 ($5.85) | ( ) |
| 10+ | $4.98 ($5.73) | ( ) |
