3600B/14 (100')
Multipair Cable, Discrete Wire, Screened, 7 Pair, 28 AWG, 100 ft, 30.48 m

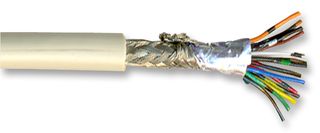

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | 3M |
|---|---|
| Manufacturer Part No | 3600B/14 (100')Copy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 2396433 |
| Also Known As | 7000058349 |
| Your Part Number | |
| Technical Datasheet |
18 total stock globally
Need more?
18 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $544.630 ($626.3245) |
Price for:1 Reel: (100ft/30.48m)
Minimum: 1
Multiple: 1
$544.63 ($626.32 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | 3M |
|---|---|
| Manufacturer Part No | 3600B/14 (100')Copy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 2396433 |
| Also Known As | 7000058349 |
| Technical Datasheet | |
| Cable Shielding | Screened |
| No. of Pairs | 7 Pair |
| Wire Gauge | 28AWG |
| Conductor Area CSA | - |
| Reel Length (Imperial) | 100ft |
| Reel Length (Metric) | 30.48m |
| Jacket Colour | Beige |
| No. of Max Strands x Strand Size | 7 x 36AWG |
| Voltage Rating | 150V |
| Jacket Material | PVC |
| Conductor Material | Tinned Copper |
| External Diameter | 5.6mm |
| Product Range | - |
| SVHC | No SVHC (17-Dec-2014) |
Product Overview
The 3600B/14 (100') is a 100ft 14-conductor colour coded shielded round Twisted Pair Cable, 28AWG stranded wire provides flexibility. The 3600X series twisted pair cable is made of tinned copper conductor, beige PVC jacket.
- CPR: Not Yet Qualified
- Twisted pairs reduce crosstalk for balanced drive applications
- Dual shielding with aluminium film foil and copper braid provides excellent EMI/ESD protection
- Colour-coded for easy identification
- 35db Average shielding effectiveness
- Meets external wiring requirements of National Electrical Code, Article 725 (CL2)
- 58Ω Unbalanced, 91Ω balanced characteristic impedance
- NEC 725, CL2 Flammability rating
Applications
Industrial
Technical Specifications
| Cable Shielding | Screened |
|---|---|
| Wire Gauge | 28AWG |
| Reel Length (Imperial) | 100ft |
| Jacket Colour | Beige |
| Voltage Rating | 150V |
| Conductor Material | Tinned Copper |
| Product Range | - |
| No. of Pairs | 7 Pair |
|---|---|
| Conductor Area CSA | - |
| Reel Length (Metric) | 30.48m |
| No. of Max Strands x Strand Size | 7 x 36AWG |
| Jacket Material | PVC |
| External Diameter | 5.6mm |
| SVHC | No SVHC (17-Dec-2014) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85444995 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (17-Dec-2014) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 1.809834 |
