8125/10

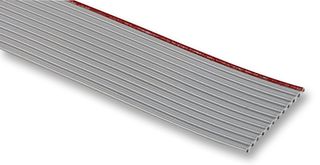

8125/10 is an 8125 series .100" 24AWG stranded, PVC round conductor flat cable. Designed for power applications requiring higher current carrying capability. It delivers optimal performance for applications requiring a higher current carrying capability. Its excellent power transmission capabilities make it ideal for various industries. With size 24AWG tinned stranded copper wire, it offers flexibility and extended cable life. The individually insulated conductors are laminated to a PVC backing, which can be zipped apart for branching or discrete terminations, providing flexibility and convenience in installation.

• Standard version, 10 conductors
• 100ft length
• 24AWG tinned stranded copper wire provides flexibility and extended product life
• Polyvinyl chloride (PVC) insulation, dark grey wires
• Voltage rating of USA: 300V, Canada: 150V, EU: <lt/>50V
• Insulation resistance of <gt/> 1 × 10^10 ohm/10ft (3m)
• Characteristic impedance of 136ohm (unbalanced)
• Temperature rating is -20°C to +105°C, Canada: -20°C to +80°C
• Excellent power transmission capabilities make it ideal for various industries
• Provides reliability and efficiency

Notes

This is Non-Splice Free Cable. The entire cable length of one packaging unit is achieved by several cable sections without a continuous electrical & mechanical connection.
