Heat Sink, Square, For DC/DC Converters, Half Brick, 57.9 mm, 11.4 mm, 61 mm

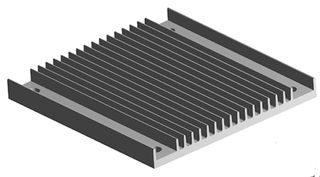

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | BOYD |
|---|---|
| Manufacturer Part No | 241204B92200GCopy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 1703176 |
| Your Part Number | |
| Technical Datasheet |
672 total stock globally
Need more?
581 Delivery in 10-14 Business Days(US stock)
91 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $13.030 ($14.9845) |
| 5+ | $12.700 ($14.605) |
| 10+ | $12.360 ($14.214) |
| 20+ | $11.900 ($13.685) |
| 50+ | $11.430 ($13.1445) |
Price for:Each
Minimum: 1
Multiple: 1
$13.03 ($14.98 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | BOYD |
|---|---|
| Manufacturer Part No | 241204B92200GCopy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 1703176 |
| Technical Datasheet | |
| Thermal Resistance | - |
| Packages Cooled | Half Brick |
| External Width - Metric | 57.9mm |
| External Height - Metric | 11.4mm |
| External Length - Metric | 61mm |
| External Diameter - Metric | - |
| Heat Sink Material | - |
| External Width - Imperial | 2.28" |
| External Height - Imperial | 0.45" |
| External Length - Imperial | 2.4" |
| External Diameter - Imperial | - |
| Product Range | - |
Product Overview
The 241204B92200G is a 11.4 x 61 x 57.9mm high fin density Heat Sink with more surface area for better heat transfer in less space. The thin fin geometry improves system airflow and reduces fan costs. This heat sink features hole pattern for mounting which fits 1/2 brick DC/DC converters from top manufacturers like Delta, Emerson and Tyco. It has crosswise fin orientations in three fin heights to allow a precise match to the application and high performance QPad3TM interface pad saves time.
- Low pressure drop
- Optimal configuration
- Simple assembly
- Maximum performance
Applications
Industrial, Consumer Electronics
Technical Specifications
| Thermal Resistance | - |
|---|---|
| External Width - Metric | 57.9mm |
| External Length - Metric | 61mm |
| Heat Sink Material | - |
| External Height - Imperial | 0.45" |
| External Diameter - Imperial | - |
| Packages Cooled | Half Brick |
|---|---|
| External Height - Metric | 11.4mm |
| External Diameter - Metric | - |
| External Width - Imperial | 2.28" |
| External Length - Imperial | 2.4" |
| Product Range | - |
