MAX01NG

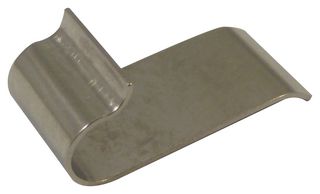

Heat Sink Clip, Aavid Thermalloy Max Clip Extrusion Profiles, 14.7 mm x 10 mm
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | BOYD |
|---|---|
| Manufacturer Part No | MAX01NGCopy |
| Manufacturer Standard Lead Time | 9 weeks |
| Order Code | 2082840 |
| Your Part Number | |
| Technical Datasheet |
4,813 total stock globally
Need more?
4,813 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 10+ | $0.716 ($0.8234) |
| 50+ | $0.658 ($0.7567) |
| 100+ | $0.636 ($0.7314) |
| 250+ | $0.604 ($0.6946) |
Price for:Each
Minimum: 10
Multiple: 10
$7.16 ($8.23 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | BOYD |
|---|---|
| Manufacturer Part No | MAX01NGCopy |
| Manufacturer Standard Lead Time | 9 weeks |
| Order Code | 2082840 |
| Technical Datasheet | |
| Fixing Type | Rail Clip |
| For Use With | Aavid Thermalloy Max Clip Extrusion Profiles |
| External Length | 14.7mm |
| External Width | 10mm |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
The MAX01NG is a 0.5mm low force Rail Mounted Clip intended solely for use with Avid Thermalloy max clip extrusion profiles.
- Series: Max Clip System™
- Accessory Type: Clip for heat sink mounting
- Designed For: TO-220 and MAX-220 semiconductor packages
- Mounting Style: DIN rail compatible
- Dimensions: 10mm x 0.5mm
Applications
Thermal Management, Industrial
Technical Specifications
| Fixing Type | Rail Clip |
|---|---|
| External Length | 14.7mm |
| Product Range | - |
| For Use With | Aavid Thermalloy Max Clip Extrusion Profiles |
|---|---|
| External Width | 10mm |
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Italy Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 76041090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0013 |
