AFAG2220-SW2
RF Antenna, PCB, Dual Band WiFi, 5.1 GHz to 5.9 GHz, 2 dBi, Vertical, Adhesive

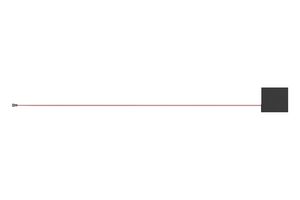

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 12 week(s)
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $5.150 ($5.9225) |
| 10+ | $3.860 ($4.439) |
| 25+ | $3.520 ($4.048) |
| 50+ | $3.340 ($3.841) |
Price for:Each
Minimum: 1
Multiple: 1
$5.15 ($5.92 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Overview
AFAG2220-SW2 is a dual-band Wi-Fi FPC antenna (IPEX connector). Typical applications include IoT, home automation, Wi-Fi/Bluetooth, industrial wearables, appliances, security and video.
- Low profile
- Flexible structure
- Omni-directional pattern
- Integrated IPEX connector
- 2400-2500MHz frequency and ≤2.0 VSWR and 5100-5900MHz frequency and ≤2.5 VSWR
- 50 ohm impedance
- 1 to 2dBi typ average gain and 6.5dBi peak gain
- Vertical polarization
- 3W power capacity
- Operating temperature range -40 to +85˚C
Technical Specifications
Antenna Type
PCB
Frequency Max
5.9GHz
Gain
2dBi
Input Power
3W
Antenna Polarisation
Vertical
SVHC
No SVHC (25-Jun-2025)
Frequency Min
5.1GHz
Antenna Mounting
Adhesive
VSWR
2.5
Input Impedance
50ohm
Product Range
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85177900
US ECCN:5A991.g
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0001
