TG2511A
TG Series

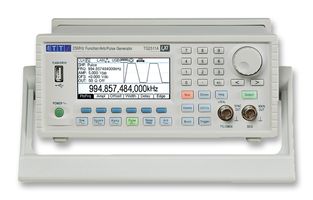

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | AIM-TTI INSTRUMENTS |
|---|---|
| Manufacturer Part No | TG2511ACopy |
| Manufacturer Standard Lead Time | 13 weeks |
| Order Code | 2400214 |
| Product Range | TG251xA Series |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $1,718.860 ($1,976.689) |
Price for:Each
Minimum: 1
Multiple: 1
$1,718.86 ($1,976.69 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | AIM-TTI INSTRUMENTS |
|---|---|
| Manufacturer Part No | TG2511ACopy |
| Manufacturer Standard Lead Time | 13 weeks |
| Order Code | 2400214 |
| Product Range | TG251xA Series |
| Technical Datasheet | |
| Signal Generator Type | Arbitrary, Function, Pulse |
| No. of Channels | 1 Channel |
| Product Range | TG251xA Series |
| Bandwidth | 25MHz |
| Signal Generator Modulation | AM, BPSK, FM, FSK, PM, PWM, Sum |
| Manufacturer Warranty | 3 Years |
| Plug Type | UK Type G |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
The TG2511A represents the state-of-the-art in DDS based function generators. It incorporates a similar feature set as the TG5011A at a lower cost and represents exceptional value for those with lower frequency requirements.
- Standard waveforms: sine, square, ramp, pulse, sin(x)/x, noise, exponential, logarithmic, PRBS
- True pulse generator with variable delay and variable rise/fall
- Waveform storage and file transfers using USB flash drives
- Waveform Manager Plus for Windows editing software included
- Large graphic LCD with simultaneous text and waveform display
- 20mV to 20V pk-pk output from 50Ω ; multi function aux. out
- Storage for multiple instrument set-ups in non-volatile memory
- Compact half-rack 2U casing with protective buffers and handle
- Programmable via USB and LAN (LXI) interfaces; GPIB optional
- Comprehensive internal and external digital modulations: PRBS, AM, FM, PM, PWM, FSK, BSPK and Sum
Applications
Test & Measurement, Signal Processing, Sensing & Instrumentation
Notes
In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
Technical Specifications
| Signal Generator Type | Arbitrary, Function, Pulse |
|---|---|
| Product Range | TG251xA Series |
| Signal Generator Modulation | AM, BPSK, FM, FSK, PM, PWM, Sum |
| Plug Type | UK Type G |
| No. of Channels | 1 Channel |
|---|---|
| Bandwidth | 25MHz |
| Manufacturer Warranty | 3 Years |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Great Britain Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85432000 |
| US ECCN: | 3A992.a |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 5 |
