TG2512A

Function Generator, Arbitrary / Pulse, 2 Channel, 25 MHz

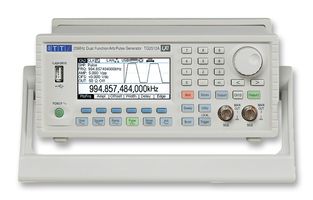

TG2512A - Function Generator, Arbitrary / Pulse, 2 Channel, 25 MHz

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
TG2512A
Order Code:
2400217
Technical Datasheet:
TG2512A   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Arbitrary, Function, Pulse

:
2 Channel

:
-

:
25MHz

:
AM, BPSK, FM, FSK, PM, PWM, Sum

:
3 Years

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

Product Overview

The TG2512A is a two channel version of the TG2511A and has identical features augmented by multi-channel capabilities including coupling for frequency and/or level, full tracking, and defined phase offset. The channels can also be used as completely independent generators and they represent excellent value for money when compared with buying two generators.
  • Standard waveforms: sine, square, ramp, pulse, sin(x)/x, noise, exponential, logarithmic, PRBS
  • True pulse generator with variable delay and variable rise/fall
  • Waveform storage and file transfers using USB flash drives
  • Waveform Manager Plus for Windows editing software included
  • Large graphic LCD with simultaneous text and waveform display
  • 20mV to 20V pk-pk output from 50R ; multi function aux. out
  • Storage for multiple instrument set-ups in non-volatile memory
  • Compact half-rack 2U casing with protective buffers and handle
  • Programmable via USB and LAN (LXI) interfaces; GPIB optional
  • Two channels - independent or linked with coupled/tracking modes
  • Selectable coupling of frequency (equal or offset), amplitude/dc offset
  • Inter-channel phase offset of -360 to + 360 degrees with a 0.1 degree resolution
  • Comprehensive internal and external digital modulations: PRBS, AM, FM, PM, PWM, FSK, BSPK and Sum

Applications

Test & Measurement, Signal Processing, Sensing & Instrumentation

Footnotes

In addition, we offer calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.

5 total stock globally Need more?

5 available for 4 - 5 business days delivery

$1,654.06 ( $1,902.17  Inc. GST)

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price (Incl GST) Your Price


1+ $1,654.06 ($1,902.17)
