1825360-6
DIP / SIP Switch, 10 Circuits, Slide, Through Hole, SPST, 24 V, 100 mA

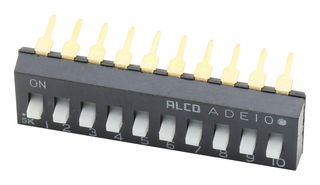

Image is for illustrative purposes only. Please refer to product description.
580 total stock globally
Need more?
580 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $2.010 ($2.3115) |
| 10+ | $1.930 ($2.2195) |
| 25+ | $1.900 ($2.185) |
| 50+ | $1.860 ($2.139) |
| 100+ | $1.830 ($2.1045) |
Price for:Each
Minimum: 1
Multiple: 1
$2.01 ($2.31 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerALCOSWITCH - TE CONNECTIVITY
Manufacturer Part No1825360-6
Order Code2468738
No. of Circuits10Circuits
Switch Actuator StyleSlide
Switch MountingThrough Hole
Contact ConfigurationSPST
Contact Voltage DC Max24V
Contact Current DC Max100mA
Product Range-
Switch TypeDIP
SVHCNo SVHC (23-Jan-2024)
Product Overview
The 1825360-6 is a 10-positon single-pole single-throw (SPST) DIP Switch with extended, slide actuator. It features vertical through-hole mounting. The DIP switch comes with black polyphenylene sulphide (PPS) housing, gold-flash contact mating area plating and gold over nickel plated solder with copper alloy contact base.
- 50mΩ Maximum initial contact resistance
- 300mΩ Contact resistance
- 1000MΩ Minimum insulation resistance
- 500VACrms Dielectric strength
- 1000 Cycles life expectancy
Applications
Industrial
Technical Specifications
No. of Circuits
10Circuits
Switch Mounting
Through Hole
Contact Voltage DC Max
24V
Product Range
-
SVHC
No SVHC (23-Jan-2024)
Switch Actuator Style
Slide
Contact Configuration
SPST
Contact Current DC Max
100mA
Switch Type
DIP
Technical Docs (2)
Alternatives for 1825360-6
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Malaysia
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Malaysia
Country in which last significant manufacturing process was carried out
Tariff No:85365019
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (23-Jan-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.004173
