EDS12SGNNTR04Q
DIP / SIP Switch, Raised Type, 12 Circuits, Slide, Surface Mount, SPST, 24 V, 25 mA

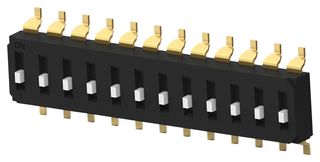

Image is for illustrative purposes only. Please refer to product description.
ManufacturerALCOSWITCH - TE CONNECTIVITY
Manufacturer Part NoEDS12SGNNTR04Q
Order Code2792721
Product RangeEDS
Also Known As3-2319847-2
Technical Datasheet
1,256 total stock globally
Need more?
1256 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $5.460 ($6.279) |
| 10+ | $5.150 ($5.9225) |
| 25+ | $4.690 ($5.3935) |
| 100+ | $4.060 ($4.669) |
| 250+ | $3.680 ($4.232) |
Price for:Each
Minimum: 1
Multiple: 1
$5.46 ($6.28 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerALCOSWITCH - TE CONNECTIVITY
Manufacturer Part NoEDS12SGNNTR04Q
Order Code2792721
Product RangeEDS
Also Known As3-2319847-2
Technical Datasheet
No. of Circuits12Circuits
Switch Actuator StyleSlide
Switch MountingSurface Mount
Contact ConfigurationSPST
Contact Voltage DC Max24V
Contact Current DC Max25mA
Product RangeEDS
Switch TypeDIP Unsealed
SVHCTo Be Advised
Product Overview
- EDS series DIP switch with raised actuator
- SMT gull wing terminals
- End stackable feature allows for PCB space saving
- Copper alloy with gold plating contacts
- High temperature nylon base cover
Technical Specifications
No. of Circuits
12Circuits
Switch Mounting
Surface Mount
Contact Voltage DC Max
24V
Product Range
EDS
SVHC
To Be Advised
Switch Actuator Style
Slide
Contact Configuration
SPST
Contact Current DC Max
25mA
Switch Type
DIP Unsealed
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85365019
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0003
