1-215079-0

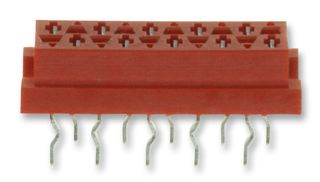

PCB Receptacle, Board-to-Board, 1.27 mm, 2 Rows, 10 Contacts, Through Hole Mount, Micro-MaTch
Need more?
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $1.720 ($1.978) |
| 10+ | $1.460 ($1.679) |
| 25+ | $1.400 ($1.610) |
| 50+ | $1.370 ($1.5755) |
| 100+ | $1.310 ($1.5065) |
| 250+ | $1.200 ($1.380) |
| 500+ | $1.060 ($1.219) |
| 1000+ | $0.970 ($1.1155) |
Product Information
Product Overview
The 1-215079-0 is a 10-position 1.27mm Centreline vertical shrouded Female-on-Board Connector with tin over nickel-plated phosphor bronze dual beam contacts and red GF polyester PBT housing. The Micro-MaTch series wire connector is suitable for mass termination of 28AWG (0.08 to 0.09mm²) ribbon cable. The Micro-MaTch contact helps prevent fretting corrosion, the traditional failure mode in tin-plated connections. Relative movements caused by vibrations/thermal expansion between male and female contacts are absorbed by an additional positioning spring in the female part. By preventing movements on the contact spot, a gas tight connection can make the Micro-MaTch contact spring system fretting corrosion resistant.
- Low profile
- Gas tight connections
- Fretting corrosion resistant
- Full range of application tooling from hand tool to fully automated equipment
Applications
Audio, Communications & Networking, Wireless, Imaging, Video & Vision
Technical Specifications
Board-to-Board
2Rows
Through Hole Mount
Phosphor Bronze
No SVHC (21-Jan-2025)
1.27mm
10Contacts
Micro-MaTch
Tin Plated Contacts
Alternatives for 1-215079-0
1 Product Found
Associated Products
4 Products Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
