160136

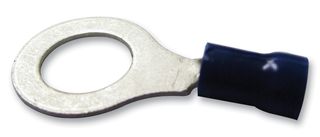

Ring Tongue Terminal, M10, 3/8", 14 AWG, 2 mm², PLASTI-GRIP, Blue
Need more?
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $1.840 ($2.116) |
| 10+ | $1.560 ($1.794) |
| 25+ | $1.470 ($1.6905) |
| 50+ | $1.400 ($1.610) |
| 100+ | $1.330 ($1.5295) |
| 250+ | $1.250 ($1.4375) |
| 500+ | $1.200 ($1.380) |
| 1000+ | $1.130 ($1.2995) |
| 2500+ | $1.050 ($1.2075) |
Product Information
Product Overview
The PLASTI-GRIP series Solderless Terminal and Splice designed specifically to answer the need for inexpensive, insulated electrical terminations. It accommodate wire sizes from 22AWG through 2/0AWG. Carefully engineered application tooling has been developed to ensure uniformly high quality terminations. Tool and terminal has been designed as a team to promote ease and speed of application and at the same time to provide precise crimping pressure for every wire size. The wire and the terminal barrel form a homogeneous mass of metal, providing a connection of maximum conductivity, tensile strength and high resistance to corrosion. The quality performance, the facility of installation and the inherent simplicity make them ideal for many industrial applications. PLASTI-GRIP products are available as rings, spades, flanged spaded, slotted rings, splices and several other varieties. Wire ranges for the terminals and splices are 22AWG through 2/0 and stud sizes from #2 through 1/2 inch.
- Serrations in the crimp barrel provide maximum contact and tensile strength after crimping
- 600V Operating voltage
- 105°C Rated temperature
Applications
HVAC, Sensing & Instrumentation, Lighting, Power Management, Logistics, Motor Drive & Control
Technical Specifications
M10
14AWG
PLASTI-GRIP
PVC (Polyvinylchloride)
3/8"
2mm²
Blue
No SVHC (21-Jan-2025)
Technical Docs (2)
Alternatives for 160136
1 Product Found
Associated Products
7 Products Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Netherlands
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
