193842-1
Contact, Universal MATE-N-LOK II, Socket, Crimp / Solder, 12 AWG, Silver Plated Contacts

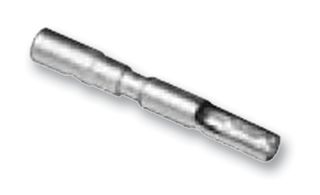

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY - AMP
Manufacturer Part No193842-1
Order Code2101871
Product RangeUniversal MATE-N-LOK II
Your Part Number
Technical Datasheet
Available to Order
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $11.380 ($13.087) |
| 10+ | $9.650 ($11.0975) |
| 100+ | $8.200 ($9.430) |
| 250+ | $7.970 ($9.1655) |
| 500+ | $7.730 ($8.8895) |
| 1000+ | $7.480 ($8.602) |
Price for:Each
Minimum: 1
Multiple: 1
$11.38 ($13.09 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTE CONNECTIVITY - AMP
Manufacturer Part No193842-1
Order Code2101871
Product RangeUniversal MATE-N-LOK II
Technical Datasheet
Product RangeUniversal MATE-N-LOK II
Contact GenderSocket
Contact Termination TypeCrimp / Solder
Wire Size AWG Max12AWG
Contact PlatingSilver Plated Contacts
For Use WithUniversal MATE-N-LOK II Series Housing Connectors
Wire Size AWG Min14AWG
Contact MaterialCopper Alloy
SVHCNo SVHC (27-Jun-2024)
Product Overview
The 193842-1 is a socket Crimp Contact made of copper alloy with silver plated finish. It accepts 14 to 12AWG wire size. This contact is suitable for Universal MATE-N-LOK II housings.
- 600VAC Operating voltage
- 32A Contact current rating
Applications
Industrial
Technical Specifications
Product Range
Universal MATE-N-LOK II
Contact Termination Type
Crimp / Solder
Contact Plating
Silver Plated Contacts
Wire Size AWG Min
14AWG
SVHC
No SVHC (27-Jun-2024)
Contact Gender
Socket
Wire Size AWG Max
12AWG
For Use With
Universal MATE-N-LOK II Series Housing Connectors
Contact Material
Copper Alloy
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.001588
