5177986-8

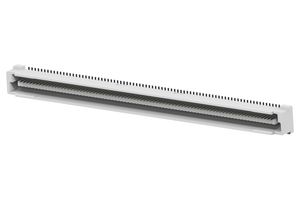

Stacking Board Connector, Free Height (FH), 160 Contacts, Plug, 0.8 mm, Surface Mount, 2 Rows
Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No5177986-8
Order Code3398176
Product RangeFree Height (FH)
Technical Datasheet
791 total stock globally
Need more?
791 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $20.170 ($23.1955) |
| 10+ | $17.970 ($20.6655) |
| 25+ | $16.580 ($19.067) |
| 50+ | $15.660 ($18.009) |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$20.17 ($23.20 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No5177986-8
Order Code3398176
Product RangeFree Height (FH)
Technical Datasheet
Product RangeFree Height (FH)
No. of Contacts160Contacts
Pitch Spacing0.8mm
Contact Termination TypeSurface Mount
No. of Rows2Rows
Contact PlatingGold Plated Contacts
Contact MaterialBrass
SVHCNo SVHC (21-Jan-2025)
Product Overview
- Board-to-board, 160 position, .8mm pitch, PCB mount header
- Fully shrouded header type
- Stackable headers
- Vertical PCB mount orientation
- 100VAC operating voltage
- 2Mohm insulation resistance
- 500VAC dielectric withstanding voltage (Max)
- Comes with mating alignment and PCB mount alignment
- Top mating entry location
- Suitable for signal circuit applications
Technical Specifications
Product Range
Free Height (FH)
Gender
Plug
Contact Termination Type
Surface Mount
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (21-Jan-2025)
No. of Contacts
160Contacts
Pitch Spacing
0.8mm
No. of Rows
2Rows
Contact Material
Brass
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000001
