Automotive Connector Contact, AMPSEAL, Socket, Crimp, 16 AWG, 20 AWG

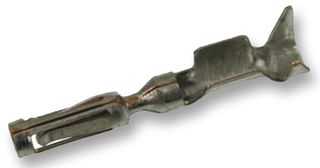

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No770520-3
Order Code2254653
Product RangeAMPSEAL
Technical Datasheet
