917804-3
Rectangular Power Contact, Dynamic 5000, Gold Plated Contacts, Copper Alloy, Pin, Crimp, 16 AWG

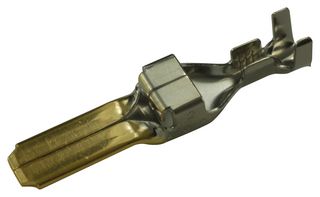

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No917804-3
Order Code3399284
Product RangeDynamic 5000
Technical Datasheet
4,021 total stock globally
Need more?
4021 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $4.890 ($5.6235) |
| 10+ | $4.350 ($5.0025) |
| 25+ | $4.330 ($4.9795) |
| 50+ | $4.280 ($4.922) |
| 100+ | $3.860 ($4.439) |
| 250+ | $3.830 ($4.4045) |
| 500+ | $3.770 ($4.3355) |
Price for:Each
Minimum: 1
Multiple: 1
$4.89 ($5.62 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No917804-3
Order Code3399284
Product RangeDynamic 5000
Technical Datasheet
Product RangeDynamic 5000
Contact PlatingGold Plated Contacts
Contact MaterialCopper Alloy
Contact GenderPin
Contact Termination TypeCrimp
Wire Size AWG Min16AWG
Wire Size AWG Max14AWG
SVHCNo SVHC (21-Jan-2025)
Product Overview
917804-3 is a Dynamic 5000 series tab contact.
- 1mm mating tab thickness
- 6.4mm mating tab width
- Gold contact mating area plating material
- 30A maximum contact current rating
- 16 to 14AWG wire size
- Operating temperature range from -55 to 105°C
Technical Specifications
Product Range
Dynamic 5000
Contact Material
Copper Alloy
Contact Termination Type
Crimp
Wire Size AWG Max
14AWG
Contact Plating
Gold Plated Contacts
Contact Gender
Pin
Wire Size AWG Min
16AWG
SVHC
No SVHC (21-Jan-2025)
