WTF083B004
Coolant Temperature Sensor, 2.828 kohm, 3975 K, Panel, -40 °C to 100 °C, 316L Stainless Steel

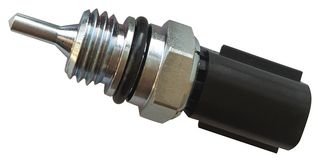

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | AMPHENOL ADVANCED SENSORS |
|---|---|
| Manufacturer Part No | WTF083B004Copy |
| Manufacturer Standard Lead Time | 19 weeks |
| Order Code | 4294641 |
| Your Part Number | |
| Technical Datasheet |
97 total stock globally
Need more?
97 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $24.310 ($27.9565) |
| 10+ | $21.750 ($25.0125) |
| 25+ | $21.020 ($24.173) |
| 50+ | $20.610 ($23.7015) |
Price for:Each
Minimum: 1
Multiple: 1
$24.31 ($27.96 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | AMPHENOL ADVANCED SENSORS |
|---|---|
| Manufacturer Part No | WTF083B004Copy |
| Manufacturer Standard Lead Time | 19 weeks |
| Order Code | 4294641 |
| Technical Datasheet | |
| Temperature Sensor Type | Coolant Temperature Sensor |
| Sensing Temperature Max | 100°C |
| Measured Temperature Min | -40°C |
| Resistance (25°C) | 2.828kohm |
| Sensor Mounting | Panel Mount |
| Resistance | 2.828kohm |
| Measured Temperature Max | 100°C |
| Thermistor Mounting | Panel |
| Product Range | - |
| B-Constant | 3975K |
| Loop Powered | No |
| SVHC | No SVHC (07-Jul-2017) |
Product Overview
WTF083B004 Thermometrics coolant temperature sensor (CTS) monitors the temperature of the coolant that is being pumped around the battery to cool the battery module in electric vehicles (EV) and plug-in hybrid electric vehicles (PHEV). The purpose of this sensor is to relay signal to the battery management system (BMS) in the event of overheating. Applications include battery coolant, HVAC refrigerant, gear box oil, inverter coolant, fuel cell.
- 316L stainless steel housing material, compact and light weight design
- USCAR compliant integrated connector, IP67 ingress compliant
- Fast response time, robust design in a variety of applications
- R at 25°C is 2828ohm ±1.3%, beta (25/85)°C is 3975K ±0.75%
- 5 seconds from 25°C to 85°C in water response time
- Temperature accuracy is R at 25°C ±0.3°C
- HNBR O-ring material, PBT-GF15 connector material
- Operating temperature range from -40°C to 100°C
Technical Specifications
| Temperature Sensor Type | Coolant Temperature Sensor |
|---|---|
| Measured Temperature Min | -40°C |
| Sensor Mounting | Panel Mount |
| Measured Temperature Max | 100°C |
| Product Range | - |
| Loop Powered | No |
| Sensing Temperature Max | 100°C |
|---|---|
| Resistance (25°C) | 2.828kohm |
| Resistance | 2.828kohm |
| Thermistor Mounting | Panel |
| B-Constant | 3975K |
| SVHC | No SVHC (07-Jul-2017) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | South Korea Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90251900 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (07-Jul-2017) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .014197 |
