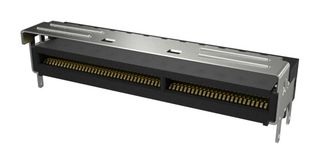

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS |
|---|---|
| Manufacturer Part No | G97R24232HRCopy |
| Manufacturer Standard Lead Time | 17 weeks |
| Order Code | 3935424 |
| Product Range | Mini Cool Edge Series |
| Your Part Number | |
| Technical Datasheet |
220 total stock globally
Need more?
220 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $13.550 ($15.5825) |
| 10+ | $11.520 ($13.248) |
| 25+ | $11.380 ($13.087) |
| 100+ | $11.250 ($12.9375) |
| 250+ | $11.110 ($12.7765) |
| 500+ | $10.970 ($12.6155) |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$13.55 ($15.58 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS |
|---|---|
| Manufacturer Part No | G97R24232HRCopy |
| Manufacturer Standard Lead Time | 17 weeks |
| Order Code | 3935424 |
| Product Range | Mini Cool Edge Series |
| Technical Datasheet | |
| Card Edge Connector Type | Dual Side |
| Card Thickness | 1.57mm |
| No. of Contacts | 124 Contacts |
| Connector Mounting | Surface Mount |
| Connector Body Orientation | Right Angle |
| Contact Termination Type | Solder |
| Contact Material | Copper Alloy |
| Contact Plating - Mating Side | 15µ" Gold Plated Contacts |
| Connector Body Material | Stainless Steel Body |
| Product Range | Mini Cool Edge Series |
| SVHC | No SVHC (12-Jan-2017) |
Product Overview
G97R24232HR is a 0.60mm pitch Mini Cool Edge IO Connector. This connector with a slim form factor design, capable of transmitting high-speed signal up to PCIe® Gen 5 and allowing much greater signal path lengths while maintaining SI performance when compared to conventional pcb routing methods.
- Supports both cable and card edge applications with one identical connector
- Right angle configuration
- High temperature thermoplastic housing
- Copper alloy with gold plated contact
Technical Specifications
| Card Edge Connector Type | Dual Side |
|---|---|
| No. of Contacts | 124 Contacts |
| Connector Body Orientation | Right Angle |
| Contact Material | Copper Alloy |
| Connector Body Material | Stainless Steel Body |
| SVHC | No SVHC (12-Jan-2017) |
| Card Thickness | 1.57mm |
|---|---|
| Connector Mounting | Surface Mount |
| Contact Termination Type | Solder |
| Contact Plating - Mating Side | 15µ" Gold Plated Contacts |
| Product Range | Mini Cool Edge Series |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366930 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (12-Jan-2017) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .006921 |
