132193

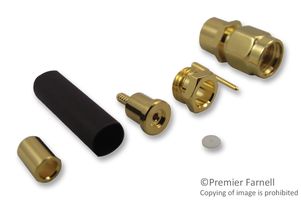

RF / Coaxial Connector, SMA Coaxial, Straight Plug, Solder, 50 ohm, RG178B, RG196A, Brass

AMPHENOL CONNEX 132193
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
132193
Order Code:
2396239
Technical Datasheet:
132193   Datasheet
See all Technical Docs

Product Overview

The 132193 is a RF Connector, SMA series, SMA straight crimp plug with gold-plated brass contacts and solder contact termination. Body made up of brass with gold-plated finish and PTFE insulator. Using a threaded interface, SMA 50ohm connector is semi-precision units that provide excellent electrical performance and outstanding mechanical durability. SMA connector offers high performance in a compact design. SMA interconnects offer a precise and simple means of phase adjustment for microwave devices. Designed to accordance with MIL-C-39012 and CECC 22110/111, SMA connectors can be mated with all connectors that meet these specification mating diameters regardless of manufacturer. Suitable for M17/93-RG178, RG-178, RG-178A, RG-178B and RG-196 cable.
  • Lightweight, compact and vibration-proof design
  • Threaded coupling mechanism
  • Standard polarity
  • Standard thread direction
  • 5000MR Insulation resistance
  • 100 Mating cycles

Applications

RF Communications, Communications & Networking, Sensing & Instrumentation, Computers & Computer Peripherals, Test & Measurement

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
SMA Coaxial

:
Straight Plug

:
Solder

:
50ohm

:
RG178B, RG196A

:
Brass

:
Gold Plated Contacts

:
12.4GHz

:
Cable Mount

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (2)

CAD Downloads

×

Terms and Conditions

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Accept Cancel

310 total stock globally Need more?

140 SG stock for 5-6 days delivery
170 UK stock for 5-8 days delivery

$12.06 ( $13.87  Inc. GST)

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price (Incl GST) Your Price


1+ $12.06 ($13.87)
