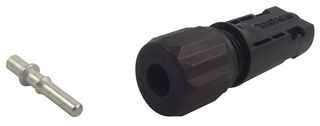

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | AMPHENOL INDUSTRIAL |
|---|---|
| Manufacturer Part No | H4CMC4DICopy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 1845702 |
| Product Range | HELIOS H4 Series |
| Your Part Number | |
| Technical Datasheet |
297 total stock globally
Need more?
297 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $4.850 ($5.5775) |
| 10+ | $4.120 ($4.738) |
| 100+ | $3.500 ($4.025) |
| 500+ | $3.120 ($3.588) |
| 1000+ | $2.980 ($3.427) |
| 2500+ | $2.790 ($3.2085) |
Price for:Each
Minimum: 1
Multiple: 1
$4.85 ($5.58 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | AMPHENOL INDUSTRIAL |
|---|---|
| Manufacturer Part No | H4CMC4DICopy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 1845702 |
| Product Range | HELIOS H4 Series |
| Technical Datasheet | |
| Photovoltaic / Solar Connector Type | Female Cable Coupler |
| Keying | Minus |
| Connector Mounting | Cable Mount |
| IP Rating | - |
| Wire Size AWG Max | 12AWG |
| Current Rating | 35A |
| Voltage Rating | 1kVDC |
| Product Range | HELIOS H4 Series |
Product Overview
The H4CMC4DI is a male standard cable gland Solar Connector with polycarbonate insulation, tin-plated copper contacts, 4mm² cable size, machined/cold formed contact with RADSOK® insert contact system and snap-lock, special unlock tool required to unmate as required by NEC2008 locking mechanism.
- Quick and easy secure snap lock mating
- Long-term UV- and ozone-resistant
- Highest current rating in industry
- Low contact resistance means low power loss
- Ready for field assembly
- Simple unlocking tool meets NEC requirements
- Fully intermateable with industry standard
- 45A Rated current
- 0.25mΩ Typical contact resistance
- IP68 (1m, 1 hour) Mated protection rating
- UL94V-0 Flammability rating
Applications
Alternative Energy
Technical Specifications
| Photovoltaic / Solar Connector Type | Female Cable Coupler |
|---|---|
| Connector Mounting | Cable Mount |
| Wire Size AWG Max | 12AWG |
| Voltage Rating | 1kVDC |
| Keying | Minus |
|---|---|
| IP Rating | - |
| Current Rating | 35A |
| Product Range | HELIOS H4 Series |
Technical Docs (3)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .02 |
