RJF5442200
Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat5e, Panel Mount
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $60.650 ($69.7475) |
| 10+ | $53.560 ($61.594) |
| 30+ | $50.030 ($57.5345) |
| 50+ | $47.730 ($54.8895) |
| 100+ | $45.820 ($52.693) |
| 250+ | $42.950 ($49.3925) |
Product Information
Product Overview

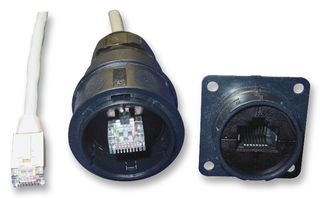

The RJF5442200 is an Ethernet Connection System with composite square flange receptacle shell and RJ45 cordset, 8 tinned holes at the rear of the PCB to solder the cable. RJF544 allows to use an Ethernet Class D/Cat 5e connection for 10 BaseT, 100 Base TX or 1000 BaseT networks in harsh environments. With the patented RJStopR system can use a standard RJ45 cordset in a protective composite plug which will protect it from shocks, dust and fluids. No hazardous on-field cabling and grounding.
- Shock, vibration and traction-resistant
- No cabling operation in field and no tools required
- Sealed against fluids and dust (IP68)
- Quick push pull coupling
- RJ45 cordset retention in the plug of 100N in the axis
- Improved EMI protection
- Compliant with IEC 60603-7 variant 12
Applications
Communications & Networking, Automation & Process Control, Robotics, Industrial
Technical Specifications
RJ45 Jack
8P8C
-
Vertical
Without Magnetics
Without Light Pipe
1 x 1 (Port)
Cat5e
Panel Mount
Unshielded
Without LED
RJF 544
