191-2801-150.
Ribbon Cable, Spectra Zip® Planar, Unscreened, 50 Core, 28 AWG, 0.072 mm², 100 ft, 30.48 m
- Manufacturer:
- AMPHENOL SPECTRA-STRIP AMPHENOL SPECTRA-STRIP
- Manufacturer Part No:
- 191-2801-150.
- Order Code:
- 1170229
- Product Range
- Spectra-Zip 191-2801
- Technical Datasheet:
- 191-2801-150. Datasheet
Product Range Selector (Spectra-Zip 191-2801)
See all from this product rangeAlternatives for 191-2801-150.
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Unscreened
- :
- 50Core
- :
- 28AWG
- :
- 0.072mm²
- :
- 100ft
- :
- 30.48m
- :
- Grey
- :
- 63.5mm
- :
- 7 x 36AWG
- :
- 1.27mm
- :
- 300V
- :
- Tinned Copper
- :
- PVC
- :
- Flat Ribbon Cable
- :
- Spectra-Zip 191-2801
Technical Documents (2)
CAD Downloads
--Please select...
✔
--Please select...
×
Terms and Conditions
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
Product Overview

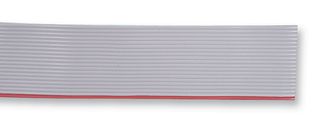

The 191-2801-150 is a 50-conductor Flat Ribbon Planar Cable with 28AWG stranded tinned copper conductors and a gray flame-retardant PVC jacket. The Spectra-Zip cable offers a balanced combination of economy, reliable performance, weight and space savings, controlled electrical characteristics. The insulation is extruded around the conductors so that the cable has a "double counter" to allow for mounting IDC connectors on either surface of the cable. A tear feature built into the cable allows easy, uniform breakouts without rupturing the insulation.
- CPR: Not Yet Qualified
- 105R Nominal impedance
- 14pf/ft at 1MHz Capacitance
- 1.5ns/ft Nominal propagation delay
- 10¹⁰R at 3 minute Minimum insulation resistance
- Precise spacing for controlled electrical characteristics
- Double contour allows termination from either side of the cable
- Flexible insulation
- Easy conductor separation for circuit routing
Applications
Industrial, Consumer Electronics, Communications & Networking
