ADIS16209/PCBZ

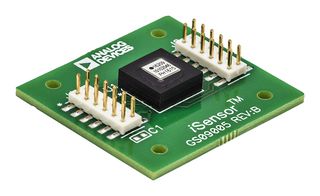

ADIS16209/PCBZ is an iSensor™ inclinometer/accelerometer evaluation board. This breakout board that provides (1) ADIS16209CCCZ and (1) interface PCB to simplify the process of prototyping during the early stages of system design and evaluation. The ADIS16209CCCZ is a fully-calibrated, digital MEMS inclinometer, which provides a serial peripheral interface (SPI) for all digital communications. It is in a 16 lead, LGA package that minimizes board space but does not support typical prototype soldering processes. The interface PCB provides access to the ADIS16209CCCZ, using dual-row, 12 pin connectors, which supports standard ribbon cable systems and hand-soldering connection techniques.

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
