DC1959B-B
Demonstration Board, LTC6948IUFD-2, Fractional-N Synthesizer, Clock & Timing

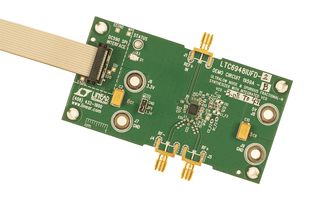

Image is for illustrative purposes only. Please refer to product description.
4 total stock globally
Need more?
4 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $261.050 ($300.2075) |
Price for:Each
Minimum: 1
Multiple: 1
$261.05 ($300.21 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerANALOG DEVICES
Manufacturer Part NoDC1959B-B
Order Code4628169
Technical Datasheet
Silicon ManufacturerAnalog Devices
Silicon Core NumberLTC6948IUFD-2
Kit Application TypeClock & Timing
Application Sub TypeFractional-N Synthesizer
Kit ContentsDemo Board LTC6948IUFD-2
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
DC1959B-B is a demonstration circuit that features the LTC6948, an ultra-low noise and spurious fractional-N synthesizer with integrated VCO. The LTC®6948 is a high performance, low noise, 4.910GHz phase-locked loop (PLL) with a fully integrated VCO, including a reference divider, phase-frequency detector (PFD), ultralow noise charge pump, fractional feedback divider, and VCO output divider.
- LTC6948IUFD-2 VCO frequency range from 3.080 to 4.910GHz
- Integers 1 through 6 output driver setting
- DC590 USB serial controller board enable SPI communication with LTC6948, by supplied FracNWizard™ SW
